Datasheet Full Pinout Nicla Sense ME (Arduino) - 5
| Manufacturer | Arduino |
| Description | The Nicla Sense ME houses 4 low power sensors in a small footprint enabling powerful data fusion capabilities on the edge. |
| Pages / Page | 7 / 5 — STORE.ARDUINO.CC/NICLA-SENSE-ME. BOTTOM. SAMD11. VIN_BQ25120. PA31. … |
| File Format / Size | PDF / 610 Kb |
| Document Language | English |

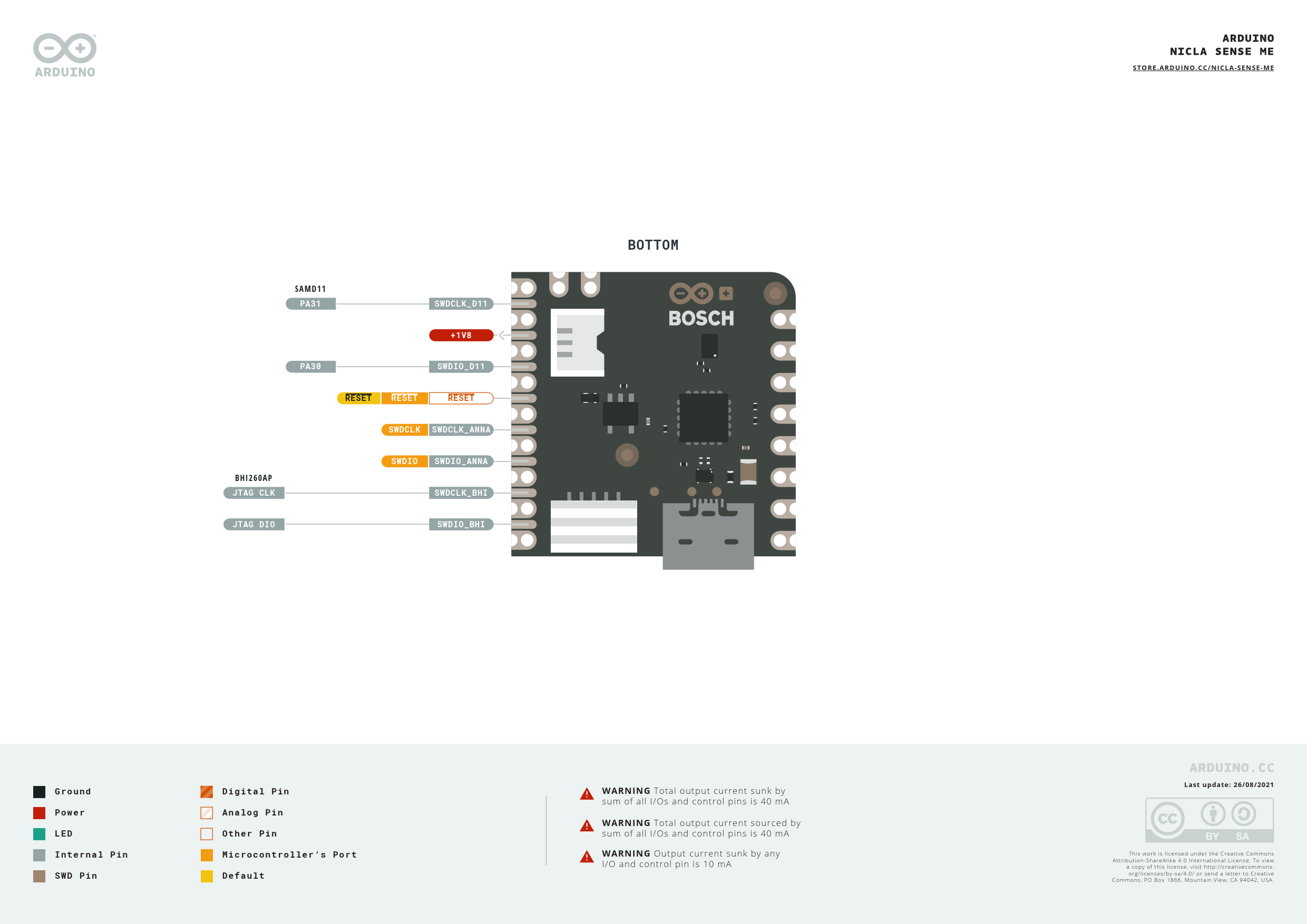

STORE.ARDUINO.CC/NICLA-SENSE-ME. BOTTOM. SAMD11. VIN_BQ25120. PA31. SWDCLK_D11. +1V8. VDDIO_EXT. PA30. SWDIO_D11. GND. RESET. PWM. P0.10. GPIO3
Text Version of Document
STORE.ARDUINO.CC/NICLA-SENSE-ME BOTTOM IN SAMD11 VIN_BQ25120 PA31 SWDCLK_D11 +1V8 VDDIO_EXT PA30 SWDIO_D11 GND RESET RESET RESET PWM P0.10 GPIO3 SWDCLK SWDCLK_ANNA PWM P0.09 GPIO2/RX SWDIO SWDIO_ANNA BHI260AP PWM P0.20 GPIO1/TX JTAG CLK SWDCLK_BHI PWM P0.23 SCL1 JTAG DIO SWDIO_BHI PWM P0.22 SDA1 Last update: 26/08/2021 Ground Digital Pin WARNING
Total output current sunk by sum of all I/Os and control pins is 40 mA
Power Analog Pin WARNING
Total output current sourced by
LED Other Pin
sum of all I/Os and control pins is 40 mA
WARNING
Output current sunk by any This work is licensed under the Creative Commons
Internal Pin Microcontroller’s Port
Attribution-ShareAlike 4.0 International License. To view I/O and control pin is 10 mA a copy of this license, visit http://creativecommons. org/licenses/by-sa/4.0/ or send a letter to Creative
SWD Pin Default
Commons, PO Box 1866, Mountain View, CA 94042, USA.
Total output current sunk by sum of all I/Os and control pins is 40 mA
Power Analog Pin WARNING
Total output current sourced by
LED Other Pin
sum of all I/Os and control pins is 40 mA
WARNING
Output current sunk by any This work is licensed under the Creative Commons
Internal Pin Microcontroller’s Port
Attribution-ShareAlike 4.0 International License. To view I/O and control pin is 10 mA a copy of this license, visit http://creativecommons. org/licenses/by-sa/4.0/ or send a letter to Creative
SWD Pin Default
Commons, PO Box 1866, Mountain View, CA 94042, USA.
