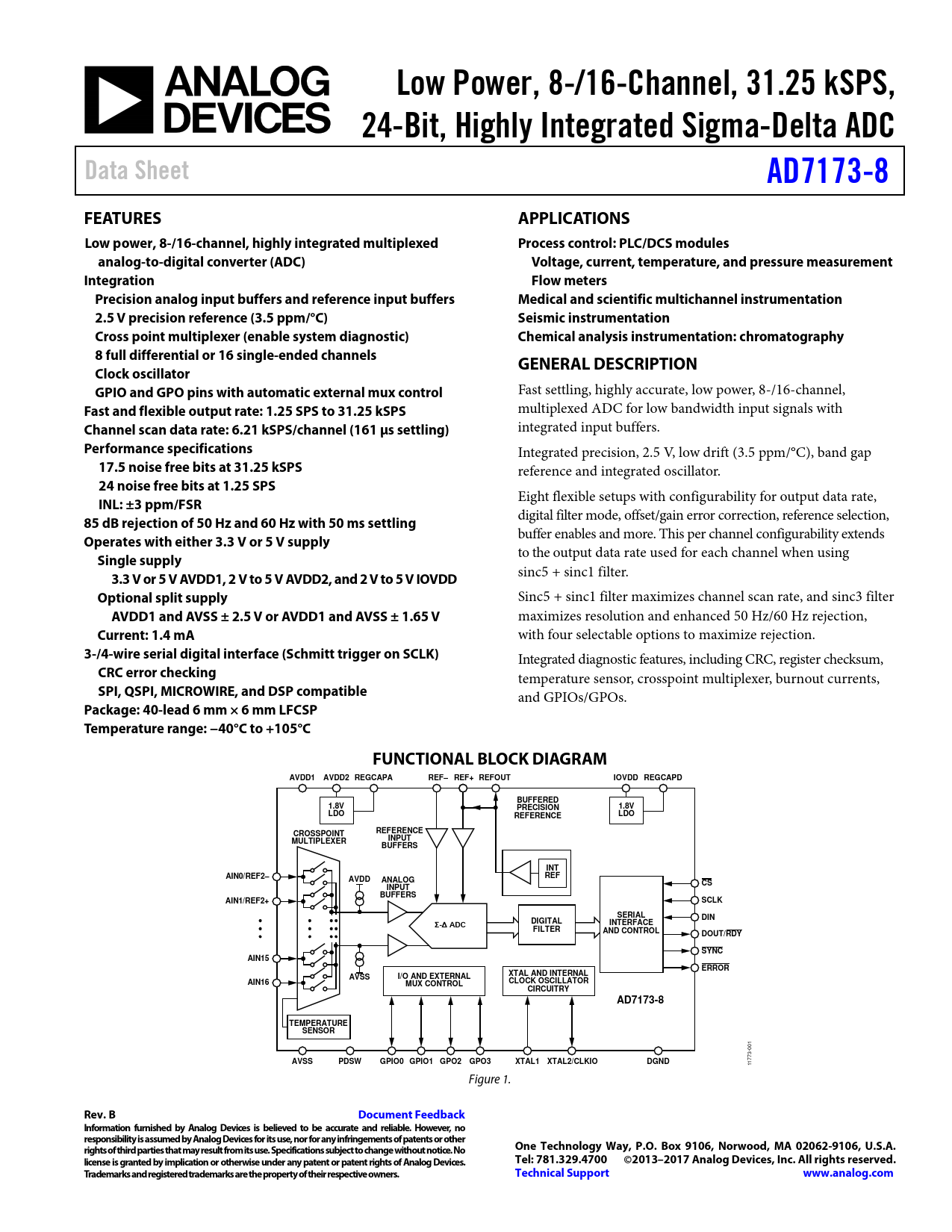

Low Power, 8-/16-Channel, 31.25 kSPS,. 24-Bit, Highly Integrated Sigma-Delta ADC. Data Sheet. AD7173-8. FEATURES. APPLICATIONS
Model Line for this Datasheet
Text Version of Document
Low Power, 8-/16-Channel, 31.25 kSPS, 24-Bit, Highly Integrated Sigma-Delta ADC Data Sheet AD7173-8 FEATURES APPLICATIONS Low power, 8-/16-channel, highly integrated multiplexed Process control: PLC/DCS modules analog-to-digital converter (ADC) Voltage, current, temperature, and pressure measurement Integration Flow meters Precision analog input buffers and reference input buffers Medical and scientific multichannel instrumentation 2.5 V precision reference (3.5 ppm/°C) Seismic instrumentation Cross point multiplexer (enable system diagnostic) Chemical analysis instrumentation: chromatography 8 full differential or 16 single-ended channels GENERAL DESCRIPTION Clock oscillator GPIO and GPO pins with automatic external mux control
Fast settling, highly accurate, low power, 8-/16-channel,
Fast and flexible output rate: 1.25 SPS to 31.25 kSPS
multiplexed ADC for low bandwidth input signals with
Channel scan data rate: 6.21 kSPS/channel (161 µs settling)
integrated input buffers.
Performance specifications
Integrated precision, 2.5 V, low drift (3.5 ppm/°C), band gap
17.5 noise free bits at 31.25 kSPS
reference and integrated oscil ator.
24 noise free bits at 1.25 SPS
Eight flexible setups with configurability for output data rate,
INL: ±3 ppm/FSR 85 dB rejection of 50 Hz and 60 Hz with 50 ms settling
digital filter mode, offset/gain error correction, reference selection,
Operates with either 3.3 V or 5 V supply
buffer enables and more. This per channel configurability extends
Single supply
to the output data rate used for each channel when using
3.3 V or 5 V AVDD1, 2 V to 5 V AVDD2, and 2 V to 5 V IOVDD
sinc5 + sinc1 filter.
Optional split supply
Sinc5 + sinc1 filter maximizes channel scan rate, and sinc3 filter
AVDD1 and AVSS ± 2.5 V or AVDD1 and AVSS ± 1.65 V
maximizes resolution and enhanced 50 Hz/60 Hz rejection,
Current: 1.4 mA
with four selectable options to maximize rejection.
3-/4-wire serial digital interface (Schmitt trigger on SCLK)
Integrated diagnostic features, including CRC, register checksum,
CRC error checking
temperature sensor, crosspoint multiplexer, burnout currents,
SPI, QSPI, MICROWIRE, and DSP compatible
and GPIOs/GPOs.
Package: 40-lead 6 mm × 6 mm LFCSP Temperature range: −40°C to +105°C FUNCTIONAL BLOCK DIAGRAM AVDD1 AVDD2 REGCAPA REF– REF+ REFOUT IOVDD REGCAPD BUFFERED 1.8V 1.8V PRECISION LDO LDO REFERENCE REFERENCE CROSSPOINT INPUT MULTIPLEXER BUFFERS INT AIN0/REF2– AVDD REF ANALOG CS INPUT BUFFERS AIN1/REF2+ SCLK SERIAL DIN Σ-Δ ADC DIGITAL INTERFACE FILTER AND CONTROL DOUT/RDY SYNC AIN15 ERROR XTAL AND INTERNAL AVSS I/O AND EXTERNAL AIN16 CLOCK OSCILLATOR MUX CONTROL CIRCUITRY AD7173-8 TEMPERATURE SENSOR
001
AVSS PDSW GPIO0 GPIO1 GPO2 GPO3 XTAL1 XTAL2/CLKIO DGND
1773- 1 Figure 1.
