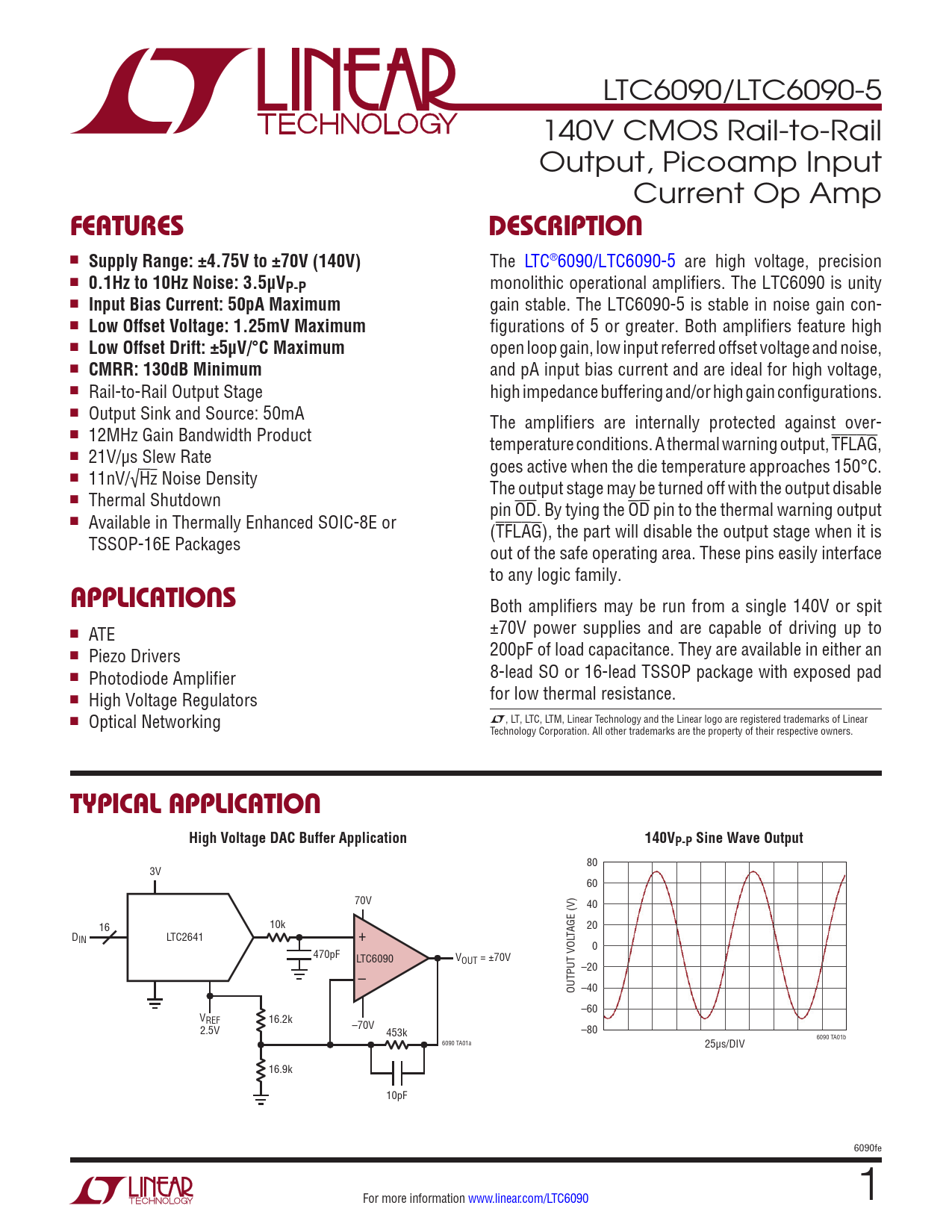

LTC6090/LTC6090-5 140V CMOS Rail-to-Rail Output, Picoamp Input Current Op Amp
FEATURES DESCRIPTION
n
Supply Range: ±4.75V to ±70V (140V)
The LTC®6090/LTC6090-5 are high voltage, precision n
0.1Hz to 10Hz Noise: 3.5μVP-P
monolithic operational amplifiers. The LTC6090 is unity n
Input Bias Current: 50pA Maximum
gain stable. The LTC6090-5 is stable in noise gain con- n
Low Offset Voltage: 1.25mV Maximum
figurations of 5 or greater. Both amplifiers feature high n
Low Offset Drift: ±5µV/°C Maximum
open loop gain, low input referred offset voltage and noise, n
CMRR: 130dB Minimum
and pA input bias current and are ideal for high voltage, n Rail-to-Rail Output Stage high impedance buffering and/or high gain configurations. n Output Sink and Source: 50mA The amplifiers are internal y protected against over- n 12MHz Gain Bandwidth Product temperature conditions. A thermal warning output, TFLAG, n 21V/µs Slew Rate goes active when the die temperature approaches 150°C. n 11nV/√Hz Noise Density The output stage may be turned off with the output disable n Thermal Shutdown pin OD. By tying the OD pin to the thermal warning output n Available in Thermally Enhanced SOIC-8E or (TFLAG), the part will disable the output stage when it is TSSOP-16E Packages out of the safe operating area. These pins easily interface to any logic family.
APPLICATIONS
Both amplifiers may be run from a single 140V or spit n ±70V power supplies and are capable of driving up to ATE n 200pF of load capacitance. They are available in either an Piezo Drivers n 8-lead SO or 16-lead TSSOP package with exposed pad Photodiode Amplifier n for low thermal resistance. High Voltage Regulators n Optical Networking L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION High Voltage DAC Buffer Application 140VP-P Sine Wave Output
80 3V 60 70V 40 10k 16 20 D TAGE (V) IN LTC2641 + 0 470pF LTC6090 VOUT = ±70V –20 – OUTPUT VOL –40 –60 VREF 16.2k –70V 2.5V 453k –80 6090 TA01b 6090 TA01a 25µs/DIV 16.9k 10pF 6090fe For more information www.linear.com/LTC6090 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
