Datasheet LTC6090, LTC6090-5 (Analog Devices) - 3

ManufacturerAnalog Devices
Description140V CMOS Rail-to-Rail Output, Picoamp Input Current Op Amp
Pages / Page26 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE …
File Format / SizePDF / 1.5 Mb
Document LanguageEnglish

ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. JUNCTION TEMPERATURE RANGE. ELECTRICAL

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION JUNCTION TEMPERATURE RANGE ELECTRICAL

Model Line for this Datasheet

Text Version of Document

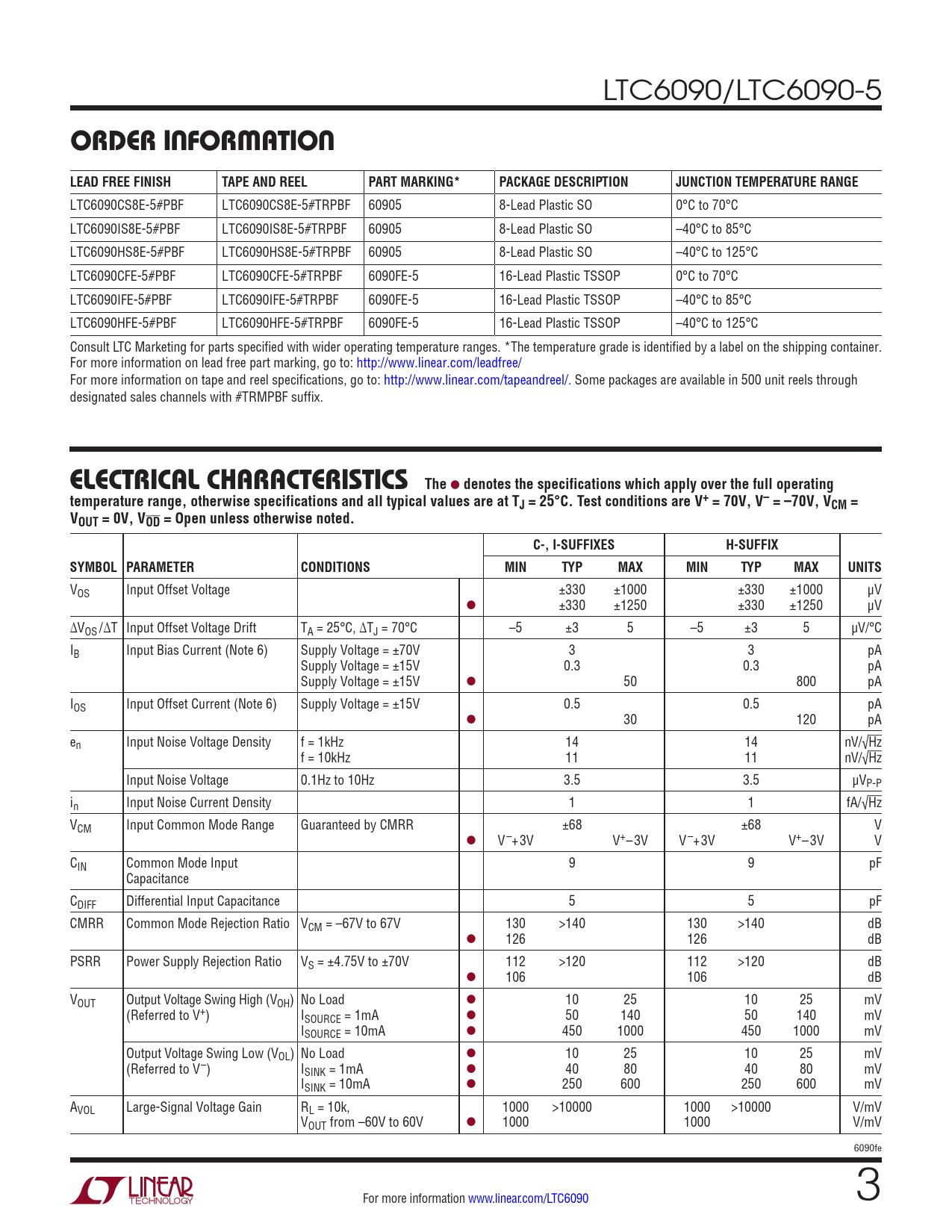

LTC6090/LTC6090-5
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION JUNCTION TEMPERATURE RANGE
LTC6090CS8E-5#PBF LTC6090CS8E-5#TRPBF 60905 8-Lead Plastic SO 0°C to 70°C LTC6090IS8E-5#PBF LTC6090IS8E-5#TRPBF 60905 8-Lead Plastic SO –40°C to 85°C LTC6090HS8E-5#PBF LTC6090HS8E-5#TRPBF 60905 8-Lead Plastic SO –40°C to 125°C LTC6090CFE-5#PBF LTC6090CFE-5#TRPBF 6090FE-5 16-Lead Plastic TSSOP 0°C to 70°C LTC6090IFE-5#PBF LTC6090IFE-5#TRPBF 6090FE-5 16-Lead Plastic TSSOP –40°C to 85°C LTC6090HFE-5#PBF LTC6090HFE-5#TRPBF 6090FE-5 16-Lead Plastic TSSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications and all typical values are at TJ = 25°C. Test conditions are V+ = 70V, V– = –70V, VCM = VOUT = 0V, VOD = Open unless otherwise noted. C-, I-SUFFIXES H-SUFFIX SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage ±330 ±1000 ±330 ±1000 μV l ±330 ±1250 ±330 ±1250 μV ∆VOS/∆T Input Offset Voltage Drift TA = 25°C, ∆TJ = 70°C –5 ±3 5 –5 ±3 5 µV/°C IB Input Bias Current (Note 6) Supply Voltage = ±70V 3 3 pA Supply Voltage = ±15V 0.3 0.3 pA Supply Voltage = ±15V l 50 800 pA IOS Input Offset Current (Note 6) Supply Voltage = ±15V 0.5 0.5 pA l 30 120 pA en Input Noise Voltage Density f = 1kHz 14 14 nV/√Hz f = 10kHz 11 11 nV/√Hz Input Noise Voltage 0.1Hz to 10Hz 3.5 3.5 µVP-P in Input Noise Current Density 1 1 fA/√Hz VCM Input Common Mode Range Guaranteed by CMRR ±68 ±68 V l V–+3V V+–3V V–+3V V+–3V V CIN Common Mode Input 9 9 pF Capacitance CDIFF Differential Input Capacitance 5 5 pF CMRR Common Mode Rejection Ratio VCM = –67V to 67V 130 >140 130 >140 dB l 126 126 dB PSRR Power Supply Rejection Ratio VS = ±4.75V to ±70V 112 >120 112 >120 dB l 106 106 dB VOUT Output Voltage Swing High (VOH) No Load l 10 25 10 25 mV (Referred to V+) ISOURCE = 1mA l 50 140 50 140 mV ISOURCE = 10mA l 450 1000 450 1000 mV Output Voltage Swing Low (VOL) No Load l 10 25 10 25 mV (Referred to V–) ISINK = 1mA l 40 80 40 80 mV ISINK = 10mA l 250 600 250 600 mV AVOL Large-Signal Voltage Gain RL = 10k, 1000 >10000 1000 >10000 V/mV VOUT from –60V to 60V l 1000 1000 V/mV 6090fe For more information www.linear.com/LTC6090 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
