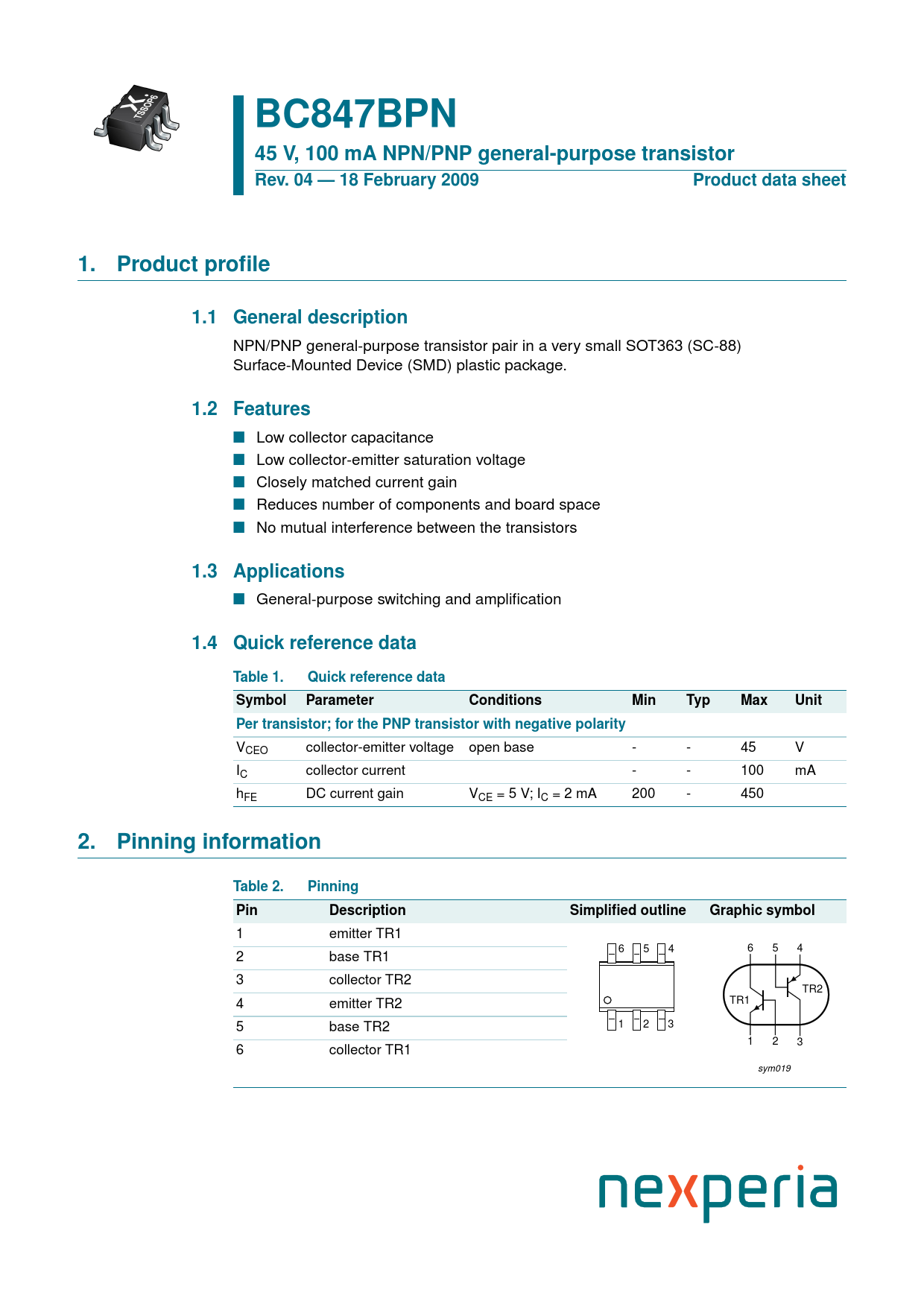

BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor. Rev. 04 — 18 February 2009. Product data sheet. Product profile
Model Line for this Datasheet
Text Version of Document
BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor Rev. 04 — 18 February 2009 Product data sheet 1. Product profile 1.1 General description
NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.
1.2 Features
n Low collector capacitance n Low collector-emitter saturation voltage n Closely matched current gain n Reduces number of components and board space n No mutual interference between the transistors
1.3 Applications
n General-purpose switching and amplification
1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per transistor; for the PNP transistor with negative polarity
VCEO collector-emitter voltage open base - - 45 V IC collector current - - 100 mA hFE DC current gain VCE = 5 V; IC = 2 mA 200 - 450
2. Pinning information Table 2. Pinning Pin Description Simplified outline Graphic symbol
1 emitter TR1 6 5 4 6 5 4 2 base TR1 3 collector TR2 TR2 4 emitter TR2 TR1 5 base TR2 1 2 3 1 2 3 6 collector TR1 sym019 Document Outline 1. Product profile 1.1 General description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Package outline 9. Packing information 10. Soldering 11. Revision history 12. Legal information 12.1 Data sheet status 12.2 Definitions 12.3 Disclaimers 12.4 Trademarks 13. Contact information 14. Contents
