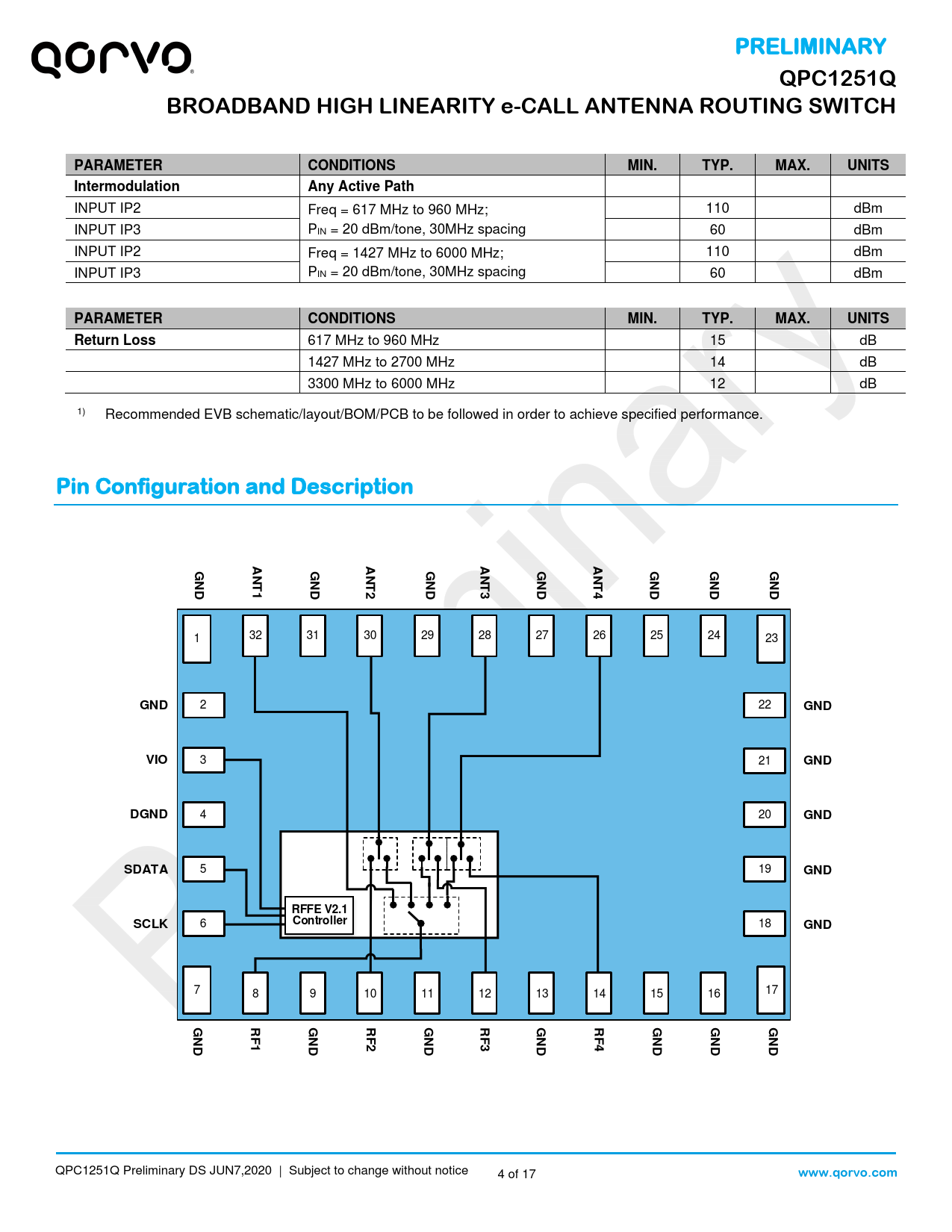

PRELIMINARY QPC1251Q BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING SWITCH PARAMETER CONDITIONS MIN. TYP. MAX. UNITS Intermodulation Any Active Path
INPUT IP2 Freq = 617 MHz to 960 MHz; 110 dBm INPUT IP3 PIN = 20 dBm/tone, 30MHz spacing 60 dBm INPUT IP2

Freq = 1427 MHz to 6000 MHz; 110 dBm INPUT IP3

PIN = 20 dBm/tone, 30MHz spacing 60 dBm
PARAMETER CONDITIONS MIN. TYP. MAX. UNITS Return Loss
617 MHz to 960 MHz 15 dB

1427 MHz to 2700 MHz 14 dB

3300 MHz to 6000 MHz 12 dB

1) Recommended EVB schematic/layout/BOM/PCB to be followed in order to achieve specified performance.
Pin Configuration and Description G A G A G A G A G G G N N N N N T N T N T N T N N N D 1 D 2 D 3 D 4 D D D
1 32 31 30 29 28 27 26 25 24 23
GND
2 22
GND VIO
3 21
GND DGND
4 20
GND SDATA
5 19
GND RFFE V2.1 SCLK Controller
6 18
GND
7 8 9 10 11 17 12 13 14 15 16
G RF G RF G RF G RF G G G N N N N N N N D 1 D 2 D 3 D 4 D D D
QPC1251Q Preliminary DS JUN7,2020 | Subject to change without notice 4 of 17
