Datasheet RD-624 (Winsen) - 5
| Manufacturer | Winsen |
| Description | Pyroelectric Infrared Sensor |
| Pages / Page | 8 / 5 — Frequency Characteristic. Fresnel Lens |
| File Format / Size | PDF / 448 Kb |
| Document Language | English |
Frequency Characteristic. Fresnel Lens
Model Line for this Datasheet
Text Version of Document
Zhengzhou Winsen Electronics Technology Co., Ltd www.winsen-sensor.com

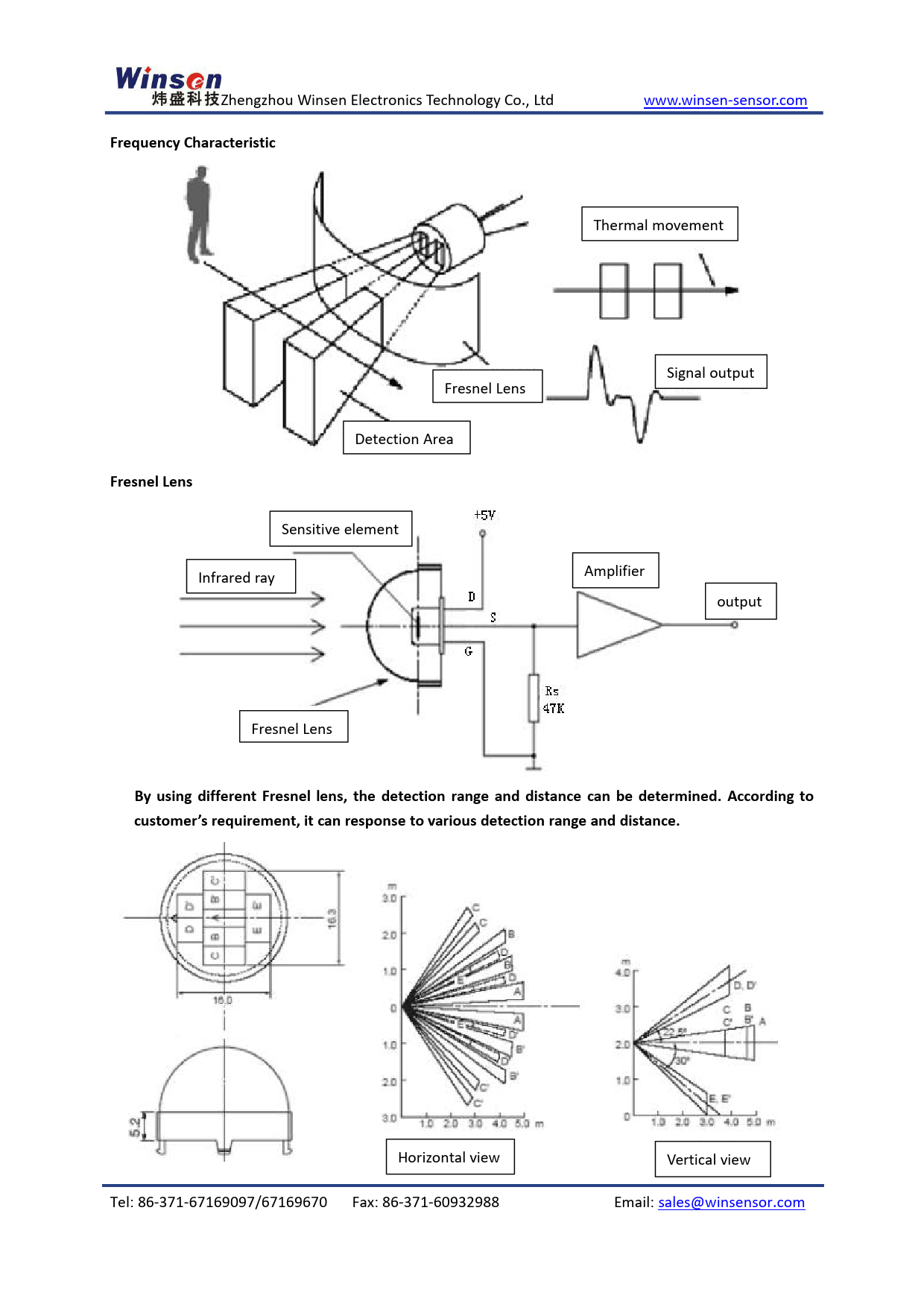

Frequency Characteristic
Thermal movement Signal output Fresnel Lens Detection Area
Fresnel Lens
Sensitive element Infrared ray Amplifier output Fresnel Lens
By using different Fresnel lens, the detection range and distance can be determined. According to customer’s requirement, it can response to various detection range and distance.
Horizontal view Vertical view Tel: 86-371-67169097/67169670 Fax: 86-371-60932988 Email: sales@winsensor.com
