Datasheet IM (TE Connectivity) - 5
| Manufacturer | TE Connectivity |
| Description | General Purpose Signal Relay, DC, Polarized, Monostable, 2 Form C DPDT-CO, 2 A Contact Rating, 3 VDC Coil Voltage, 250 VAC Contact Voltage, Axicom IM |
| Pages / Page | 11 / 5 — AXICOM IM RELAY. DIMENSIONS (UNIT: mm). THT Standard version. THT Short … |
| File Format / Size | PDF / 3.2 Mb |
| Document Language | English |
AXICOM IM RELAY. DIMENSIONS (UNIT: mm). THT Standard version. THT Short version. THT Narrow version. SMT Gull wings version
Model Line for this Datasheet
- IM00GR IM00JR IM00NS IM01CGR IM01CTS IM01GR IM01JR IM01NS IM01SR IM01TS IM02CGR IM02DGR IM02GR IM02IGR IM02IJR IM02JR IM02NS IM02PGR IM02PNS IM02SR IM03CGR IM03CJR IM03CTS IM03DGR IM03DJR IM03GR IM03JR IM03NS IM03PGR IM03PJR IM03PNS IM03SR IM03TS IM04GR IM04JR IM04NS IM05CGR IM05DGR IM05GR IM05JR IM05NS IM05SR IM05TS IM06CGR IM06CJR IM06CTS IM06DGR IM06DJR IM06DTS IM06GR IM06JR IM06NS IM06PGR IM06PNS IM06SR IM07CGR IM07CTS IM07DGR IM07DJR IM07DTS IM07GR IM07JR IM07NS IM07SR IM08GR IM11GR IM12GR IM13GR IM16GR IM17CGR IM17GR IM17TS IM21GR IM21TS IM22DTS IM22GR IM22TS IM23GR IM23KS IM23TS IM26GR IM26TS IM40GR IM40IGR IM40JR IM40NS IM40SR IM40TS IM41CGR IM41DGR IM41GR IM41JR IM41NS IM41SR IM41TS IM42CGR IM42DGR IM42DNS IM42GR IM42JR IM42NS IM42PGR IM42PNS IM42SR IM42TS IM43CGR IM43GR IM43JR IM43NS IM43PGR IM43SR IM43TS IM44GR IM44JR IM44NS IM44SR IM44TS IM45GR IM45JR IM45NS IM45SR IM46DNS IM46GR IM46JR IM46NS IM46PNS IM46SR IM46TS IM47DJR IM47GR IM47JR IM47NS IM47TS IM48CGR IM48DGR IM48GR IM48IGR IM48SR IM49DGR IM49IGR
Text Version of Document
AXICOM IM RELAY
SIGNAL RELAYS

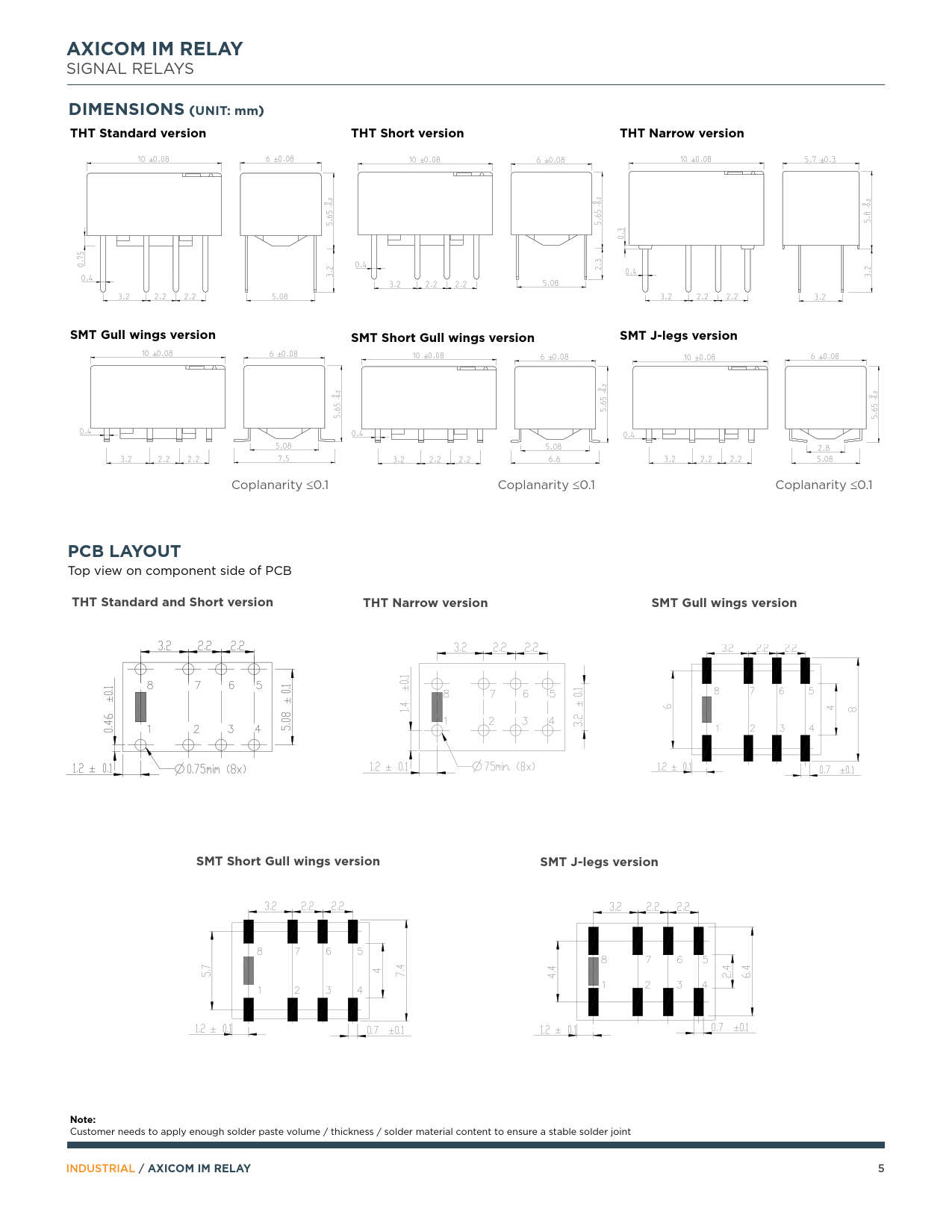

DIMENSIONS (UNIT: mm) THT Standard version THT Short version THT Narrow version SMT Gull wings version SMT Short Gull wings version SMT J-legs version
Coplanarity ≤0.1 Coplanarity ≤0.1 Coplanarity ≤0.1
PCB LAYOUT
Top view on component side of PCB
THT Standard and Short version THT Narrow version SMT Gull wings version SMT Short Gull wings version SMT J-legs version Note:
Customer needs to apply enough solder paste volume / thickness / solder material content to ensure a stable solder joint INDUSTRIAL /
