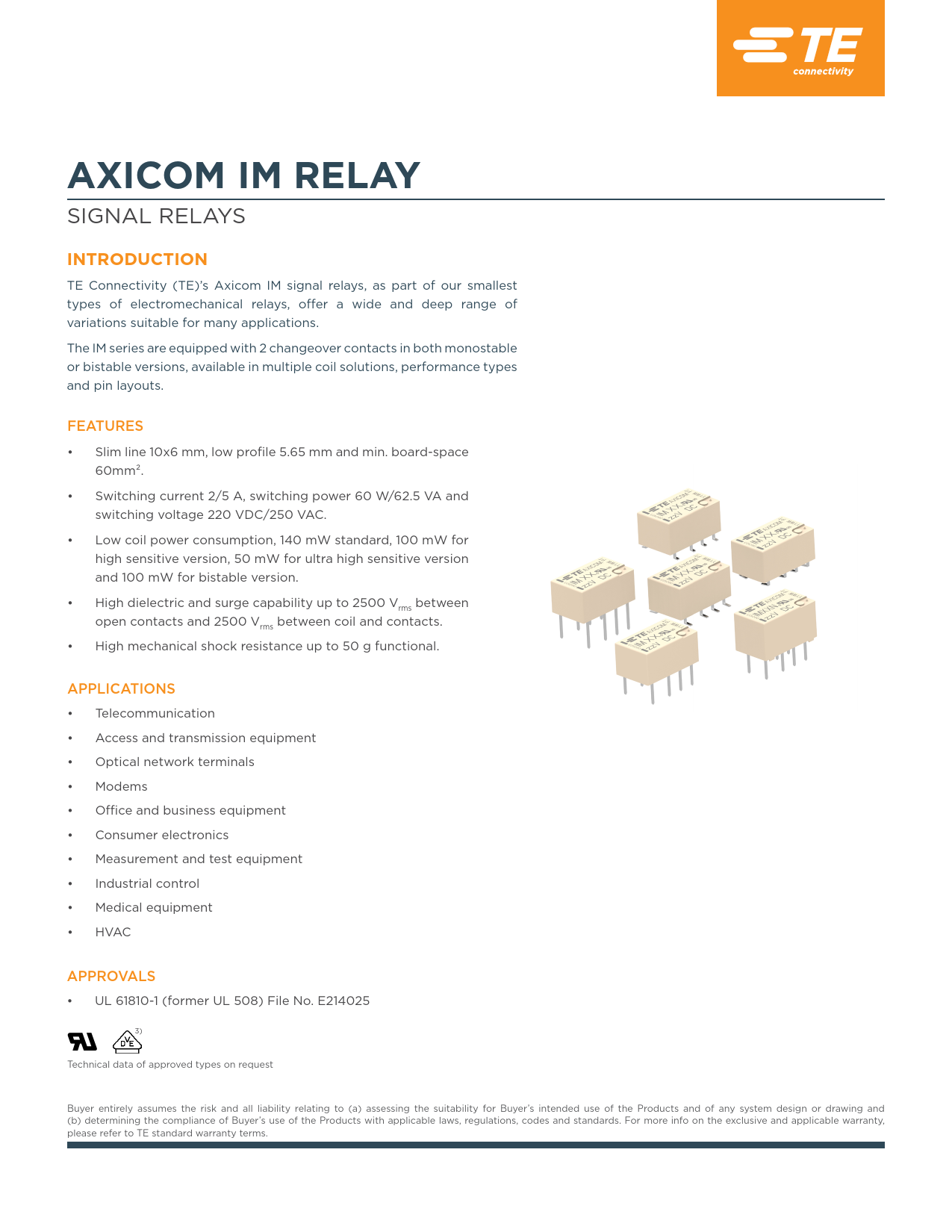

AXICOM IM RELAY
SIGNAL RELAYS
INTRODUCTION
TE Connectivity (TE)’s Axicom IM signal relays, as part of our smallest types of electromechanical relays, offer a wide and deep range of variations suitable for many applications. The IM series are equipped with 2 changeover contacts in both monostable or bistable versions, available in multiple coil solutions, performance types and pin layouts. FEATURES • Slim line 10x6 mm, low profile 5.65 mm and min. board-space 60mm². • Switching current 2/5 A, switching power 60 W/62.5 VA and switching voltage 220 VDC/250 VAC. • Low coil power consumption, 140 mW standard, 100 mW for high sensitive version, 50 mW for ultra high sensitive version and 100 mW for bistable version. • High dielectric and surge capability up to 2500 V between rms open contacts and 2500 V between coil and contacts. rms • High mechanical shock resistance up to 50 g functional. APPLICATIONS • Telecommunication • Access and transmission equipment • Optical network terminals • Modems • Office and business equipment • Consumer electronics • Measurement and test equipment • Industrial control • Medical equipment • HVAC APPROVALS • UL 61810-1 (former UL 508) File No. E214025 U 3) Technical data of approved types on request Buyer entirely assumes the risk and all liability relating to (a) assessing the suitability for Buyer’s intended use of the Products and of any system design or drawing and (b) determining the compliance of Buyer’s use of the Products with applicable laws, regulations, codes and standards. For more info on the exclusive and applicable warranty, please refer to TE standard warranty terms. Document Outline Introduction Features Applications Approvals Contact Data Max. DC load breaking capacity Coil Data Coil versions, standard version, monostable, 1 coil Coil operating range, standard version, monostable, 1 coil Coil versions, sensitive version, monostable, 1 coil Coil versions, ultra high sensitive version, monostable, 1 coil Coil operating range, sensitive and ultra high sensitive version, monostable, 1 coil Coil versions, standard version, bistable 1 coil Coil operating range, Standard version, bistable, 1 coil Insulation Data Other Data Monostable version rest condition Bistable version, 1 coil reset condition RF data Dimensions PCB layout Processing Packing Product code structure Product Selection Information
