Datasheet TZX (Vishay) - 4
| Manufacturer | Vishay |
| Description | Small Signal Zener Diodes in DO-35 (DO-204AH) package |
| Pages / Page | 7 / 4 — TZX-Series. ELECTRICAL CHARACTERISTICS. ZENER VOLTAGE. DYNAMIC. TEST … |
| File Format / Size | PDF / 125 Kb |
| Document Language | English |

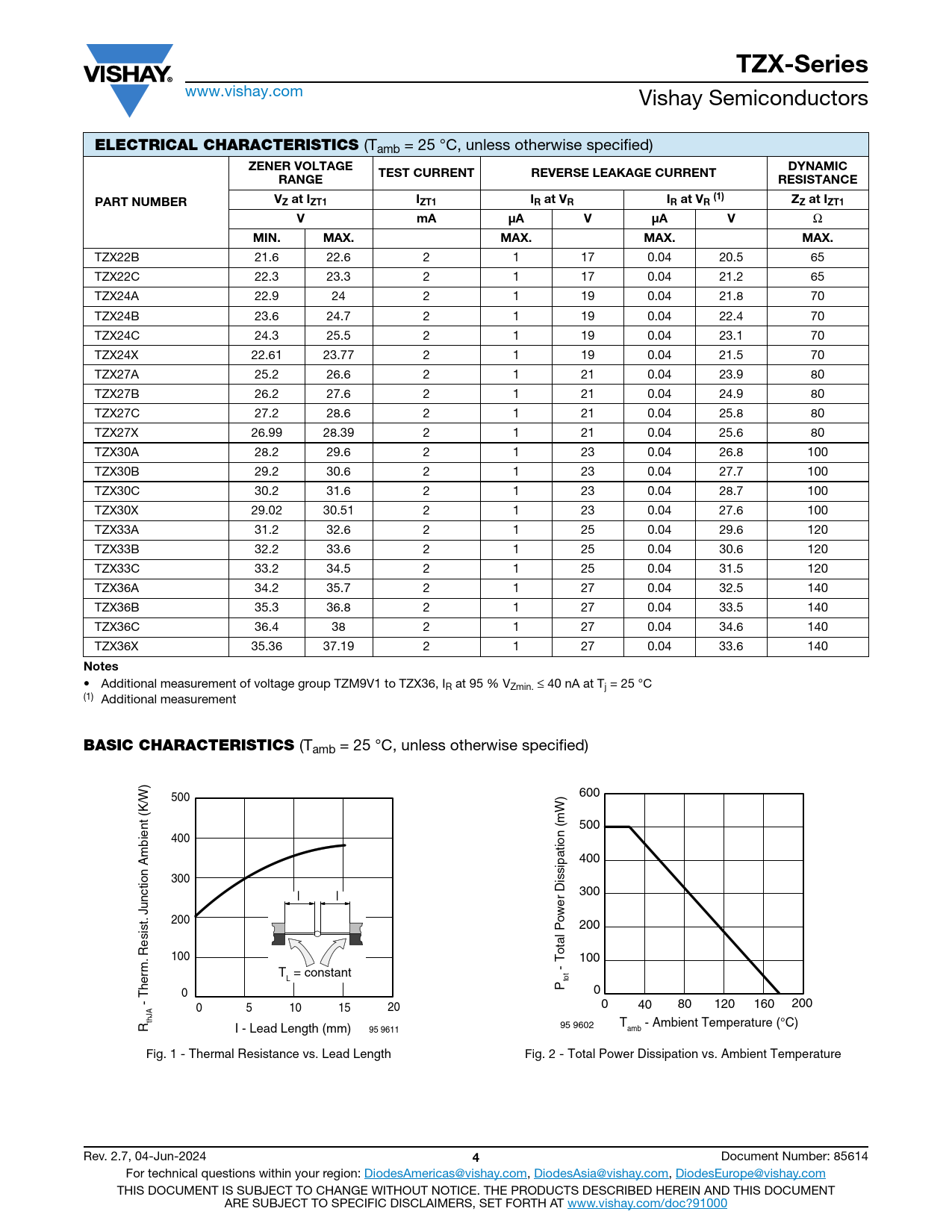

TZX-Series. ELECTRICAL CHARACTERISTICS. ZENER VOLTAGE. DYNAMIC. TEST CURRENT. REVERSE LEAKAGE CURRENT. RANGE. RESISTANCE. PART NUMBER
Model Line for this Datasheet
- TZX10A-TAP TZX10A-TR TZX10B-TAP TZX10B-TR TZX10C-TAP TZX10C-TR TZX10D-TAP TZX10D-TR TZX11A-TAP TZX11A-TR TZX11B-TAP TZX11B-TR TZX11C-TAP TZX11C-TR TZX11D-TAP TZX11D-TR TZX12A-TAP TZX12A-TR TZX12B-TAP TZX12B-TR TZX12C-TAP TZX12C-TR TZX12D-TAP TZX12D-TR TZX12X-TAP TZX13A-TAP TZX13A-TR TZX13B-TAP TZX13B-TR TZX13C-TAP TZX13C-TR TZX14A-TAP TZX14A-TR TZX14B-TAP TZX14B-TR TZX14C-TAP TZX14C-TR TZX15A-TAP TZX15A-TR TZX15B-TAP TZX15B-TR TZX15C-TAP TZX15C-TR TZX15X-TAP TZX16A-TAP TZX16A-TR TZX16B-TAP TZX16B-TR TZX16C-TAP TZX16C-TR TZX18A-TAP TZX18A-TR TZX18B-TAP TZX18B-TR TZX18C-TAP TZX18C-TR TZX20A-TAP TZX20A-TR TZX20B-TAP TZX20B-TR TZX20C-TAP TZX20C-TR TZX22A-TAP TZX22A-TR TZX22B-TAP TZX22B-TR TZX22C-TAP TZX22C-TR TZX24A-TAP TZX24A-TR TZX24B-TAP TZX24B-TR TZX24C-TAP TZX24C-TR TZX24X-TAP TZX27A-TAP TZX27A-TR TZX27B-TAP TZX27B-TR TZX27C-TAP TZX27C-TR TZX27X-TAP TZX2V4A-TAP TZX2V4A-TR TZX2V4B-TAP TZX2V4B-TR TZX2V7A-TAP TZX2V7A-TR TZX2V7B-TAP TZX2V7B-TR TZX2V7C-TAP TZX2V7C-TR TZX30A-TAP TZX30A-TR TZX30B-TAP TZX30B-TR TZX30C-TAP TZX30C-TR TZX30X-TAP TZX33A-TAP TZX33A-TR TZX33B-TAP TZX33B-TR TZX33C-TAP TZX33C-TR TZX36A-TAP TZX36A-TR TZX36B-TAP TZX36B-TR TZX36C-TAP TZX36C-TR TZX36X-TAP TZX3V0A-TAP TZX3V0A-TR TZX3V0B-TAP TZX3V0B-TR TZX3V0C-TAP TZX3V0C-TR TZX3V3A-TAP TZX3V3A-TR TZX3V3B-TAP TZX3V3B-TR TZX3V3C-TAP TZX3V3C-TR TZX3V6A-TAP TZX3V6A-TR TZX3V6B-TAP TZX3V6B-TR TZX3V6C-TAP TZX3V6C-TR TZX3V9A-TAP TZX3V9A-TR TZX3V9B-TAP TZX3V9B-TR TZX3V9C-TAP TZX3V9C-TR TZX4V3A-TAP TZX4V3A-TR TZX4V3B-TAP TZX4V3B-TR TZX4V3C-TAP TZX4V3C-TR TZX4V3D-TAP TZX4V3D-TR TZX4V7A-TAP TZX4V7A-TR TZX4V7B-TAP TZX4V7B-TR TZX4V7C-TAP TZX4V7C-TR TZX4V7D-TAP TZX4V7D-TR TZX5V1A-TAP TZX5V1A-TR TZX5V1B-TAP TZX5V1B-TR TZX5V1C-TAP TZX5V1C-TR TZX5V1D-TAP TZX5V1D-TR TZX5V6A-TAP TZX5V6A-TR TZX5V6B-TAP TZX5V6B-TR TZX5V6C-TAP TZX5V6C-TR TZX5V6D-TAP TZX5V6D-TR TZX5V6E-TAP TZX5V6E-TR TZX6V2A-TAP TZX6V2A-TR TZX6V2B-TAP TZX6V2B-TR TZX6V2C-TAP TZX6V2C-TR TZX6V2D-TAP TZX6V2D-TR TZX6V2E-TAP TZX6V2E-TR TZX6V8A-TAP TZX6V8A-TR TZX6V8B-TAP TZX6V8B-TR TZX6V8C-TAP TZX6V8C-TR TZX6V8D-TAP TZX6V8D-TR TZX7V5A-TAP TZX7V5A-TR TZX7V5B-TAP TZX7V5B-TR TZX7V5C-TAP TZX7V5C-TR TZX7V5D-TAP TZX7V5D-TR TZX7V5X-TAP TZX8V2A-TAP TZX8V2A-TR TZX8V2B-TAP TZX8V2B-TR TZX8V2C-TAP TZX8V2C-TR TZX8V2D-TAP TZX8V2D-TR TZX9V1A-TAP TZX9V1A-TR TZX9V1B-TAP TZX9V1B-TR TZX9V1C-TAP TZX9V1C-TR TZX9V1D-TAP TZX9V1D-TR TZX9V1E-TAP TZX9V1E-TR
Text Version of Document
TZX-Series
www.vishay.com Vishay Semiconductors
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
ZENER VOLTAGE DYNAMIC TEST CURRENT REVERSE LEAKAGE CURRENT RANGE RESISTANCE PART NUMBER VZ at IZT1 IZT1 IR at VR IR at VR (1) ZZ at IZT1 V mA μA V μA V
Ω
MIN. MAX. MAX. MAX. MAX.
TZX22B 21.6 22.6 2 1 17 0.04 20.5 65 TZX22C 22.3 23.3 2 1 17 0.04 21.2 65 TZX24A 22.9 24 2 1 19 0.04 21.8 70 TZX24B 23.6 24.7 2 1 19 0.04 22.4 70 TZX24C 24.3 25.5 2 1 19 0.04 23.1 70 TZX24X 22.61 23.77 2 1 19 0.04 21.5 70 TZX27A 25.2 26.6 2 1 21 0.04 23.9 80 TZX27B 26.2 27.6 2 1 21 0.04 24.9 80 TZX27C 27.2 28.6 2 1 21 0.04 25.8 80 TZX27X 26.99 28.39 2 1 21 0.04 25.6 80 TZX30A 28.2 29.6 2 1 23 0.04 26.8 100 TZX30B 29.2 30.6 2 1 23 0.04 27.7 100 TZX30C 30.2 31.6 2 1 23 0.04 28.7 100 TZX30X 29.02 30.51 2 1 23 0.04 27.6 100 TZX33A 31.2 32.6 2 1 25 0.04 29.6 120 TZX33B 32.2 33.6 2 1 25 0.04 30.6 120 TZX33C 33.2 34.5 2 1 25 0.04 31.5 120 TZX36A 34.2 35.7 2 1 27 0.04 32.5 140 TZX36B 35.3 36.8 2 1 27 0.04 33.5 140 TZX36C 36.4 38 2 1 27 0.04 34.6 140 TZX36X 35.36 37.19 2 1 27 0.04 33.6 140
Notes
• Additional measurement of voltage group TZM9V1 to TZX36, IR at 95 % VZmin. ≤ 40 nA at Tj = 25 °C (1) Additional measurement
BASIC CHARACTERISTICS
