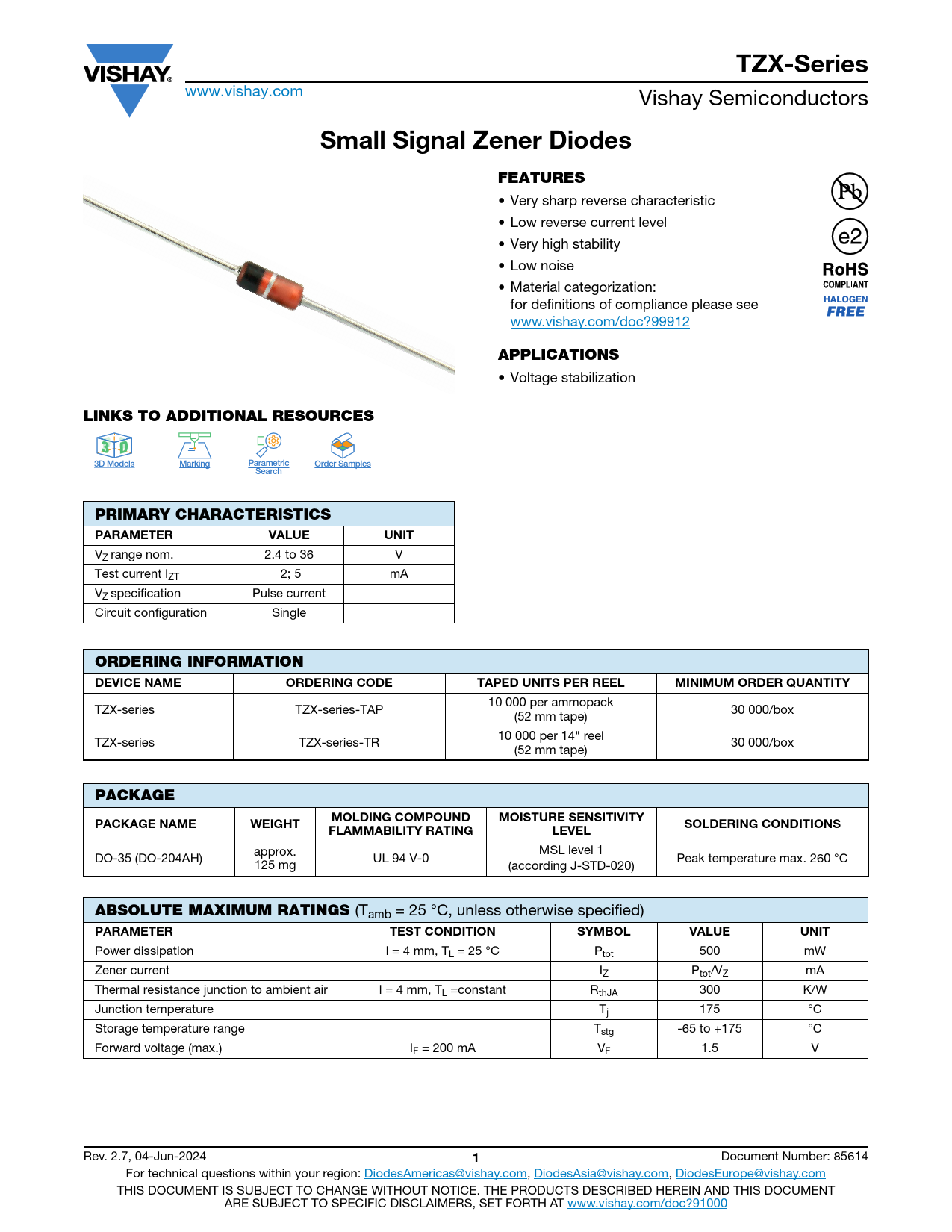

TZX-Series
www.vishay.com Vishay Semiconductors
Small Signal Zener Diodes FEATURES
• Very sharp reverse characteristic • Low reverse current level • Very high stability • Low noise • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
APPLICATIONS
• Voltage stabilization
LINKS TO ADDITIONAL RESOURCES D 3 3 D 3D Models Marking Parametric Order Samples Search PRIMARY CHARACTERISTICS PARAMETER VALUE UNIT
VZ range nom. 2.4 to 36 V Test current IZT 2; 5 mA VZ specification Pulse current Circuit configuration Single
ORDERING INFORMATION DEVICE NAME ORDERING CODE TAPED UNITS PER REEL MINIMUM ORDER QUANTITY
10 000 per ammopack TZX-series TZX-series-TAP 30 000/box (52 mm tape) 10 000 per 14" reel TZX-series TZX-series-TR 30 000/box (52 mm tape)
PACKAGE MOLDING COMPOUND MOISTURE SENSITIVITY PACKAGE NAME WEIGHT SOLDERING CONDITIONS FLAMMABILITY RATING LEVEL
approx. MSL level 1 DO-35 (DO-204AH) UL 94 V-0 Peak temperature max. 260 °C 125 mg (according J-STD-020)
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Power dissipation l = 4 mm, TL = 25 °C Ptot 500 mW Zener current IZ Ptot/VZ mA Thermal resistance junction to ambient air l = 4 mm, TL =constant RthJA 300 K/W Junction temperature Tj 175 °C Storage temperature range Tstg -65 to +175 °C Forward voltage (max.) IF = 200 mA VF 1.5 V Rev. 2.7, 04-Jun-2024
