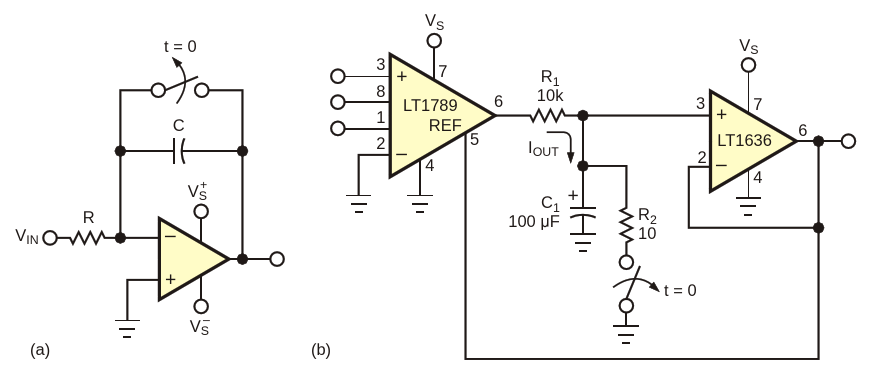

The classic integrator in (a) inverts and requires split supplies. The circuit in (b) is noninverting and works with a single supply

AuthorsGlen Brisebois
Main DocumentArticle «Instrumentation amp makes noninverting integrator»
DescriptionFigure 1
File Format / SizePDF / 29 Kb
Document Languageenglish

The classic integrator in (a) inverts and requires split supplies. The circuit in (b) is noninverting and works with a single supply
