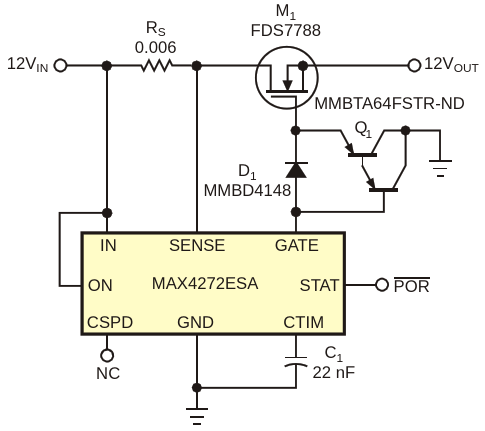

The addition of Q₁ increases the gate-pulldown current, limiting the short-circuit-current duration to less than 0.5 µsec
