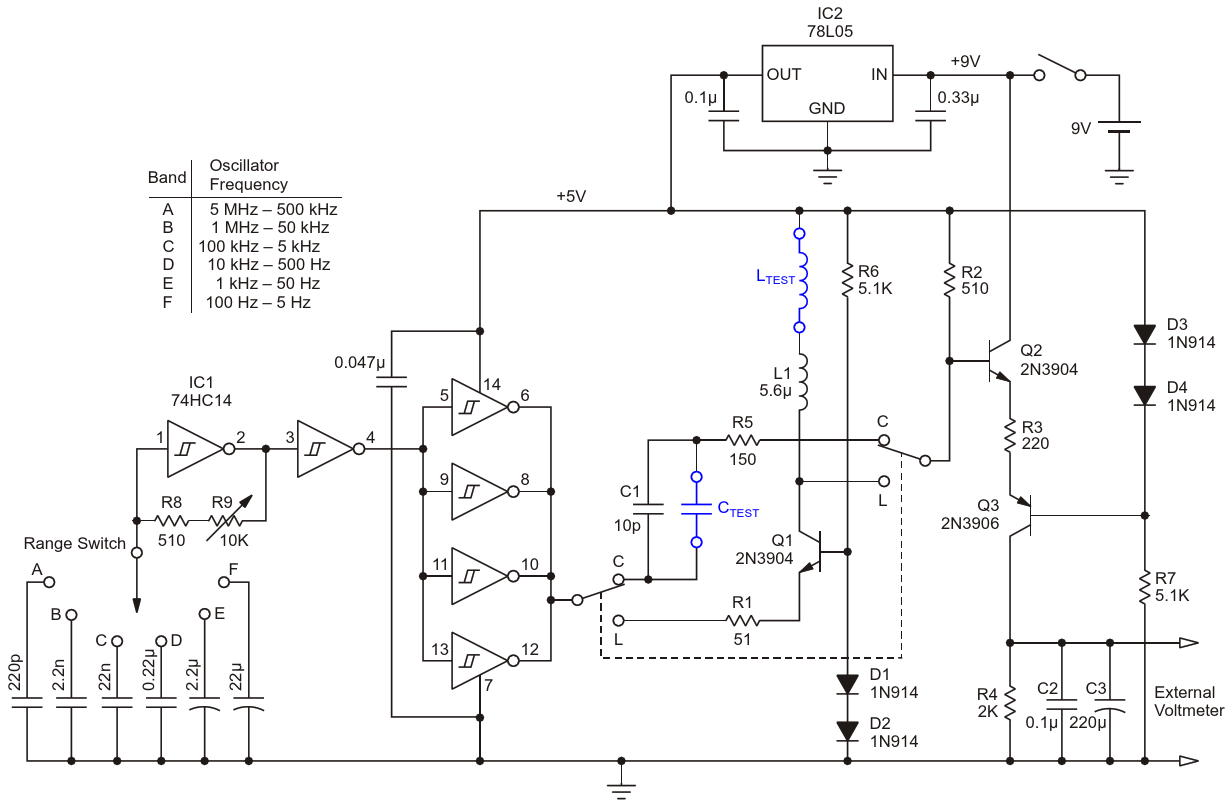

Complete schematic of C and L meter
| Authors | John Fattaruso |
| Main Document | Article «Measure inductance |
| Description | Figure 2 |
| File Format / Size | PDF / 98 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Measure inductance
- Figure 1. Basic scheme for measuring capacitors (a) and inductors (b) with variable frequency square waves
- Figure 2. Complete schematic of C and L meter
- Figure 3. Example dial marking graphic for R9
