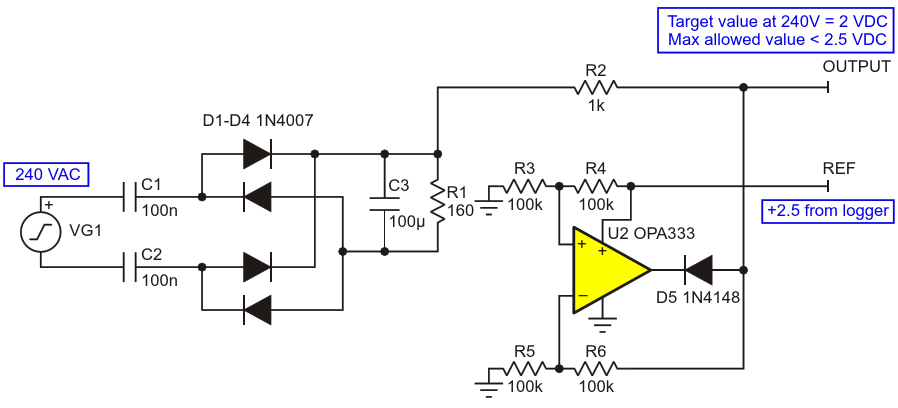

Clamping circuit shown with the AC voltage measurement circuit
| Main Document | Article «Precision clamp protects data logger» |
| Description | Figure 2 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Precision clamp protects data logger»
- Figure 1. Clamp circuit to precision clamp a 2.5 Volt output while operating on a 2.5 Volt power supply
- Figure 2. Clamping circuit shown with the AC voltage measurement circuit
