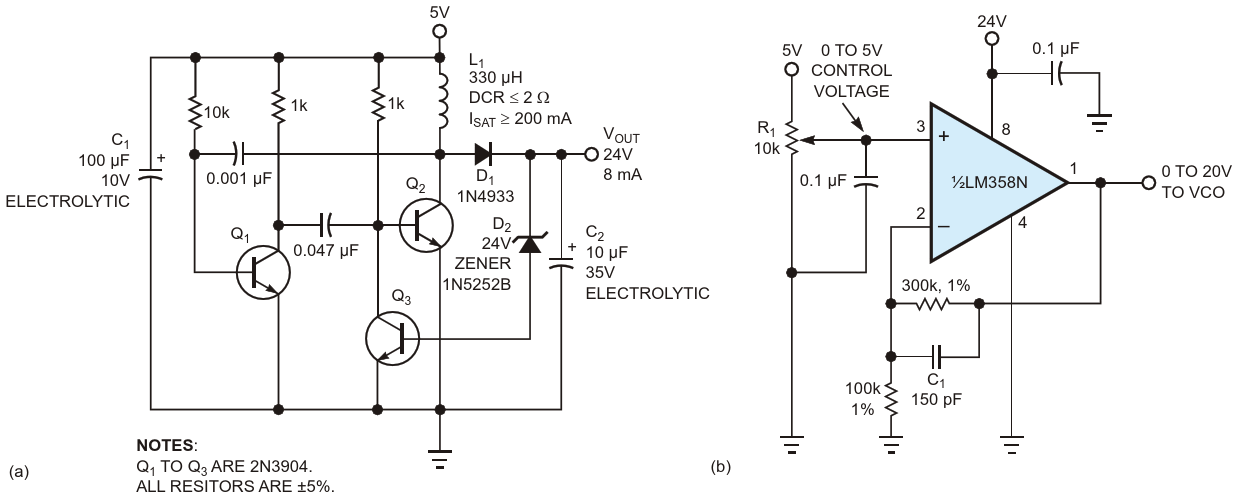

A simple three-transistor switching regulator (a) supplies 24 V and 8 mA. The circuit can help provide a 0 to 20 V VCO tuning voltage from a 0 to 5V control voltage (b)

AuthorsPaul C Florian
Main DocumentArticle «Low-Cost Switcher Converts 5 to 24V»
DescriptionFigure 1
File Format / SizePDF / 36 Kb
Document Languageenglish

A simple three-transistor switching regulator (a) supplies 24 V and 8 mA The circuit can help provide a 0 to 20 V VCO tuning voltage from a 0 to 5V control voltage (b)
