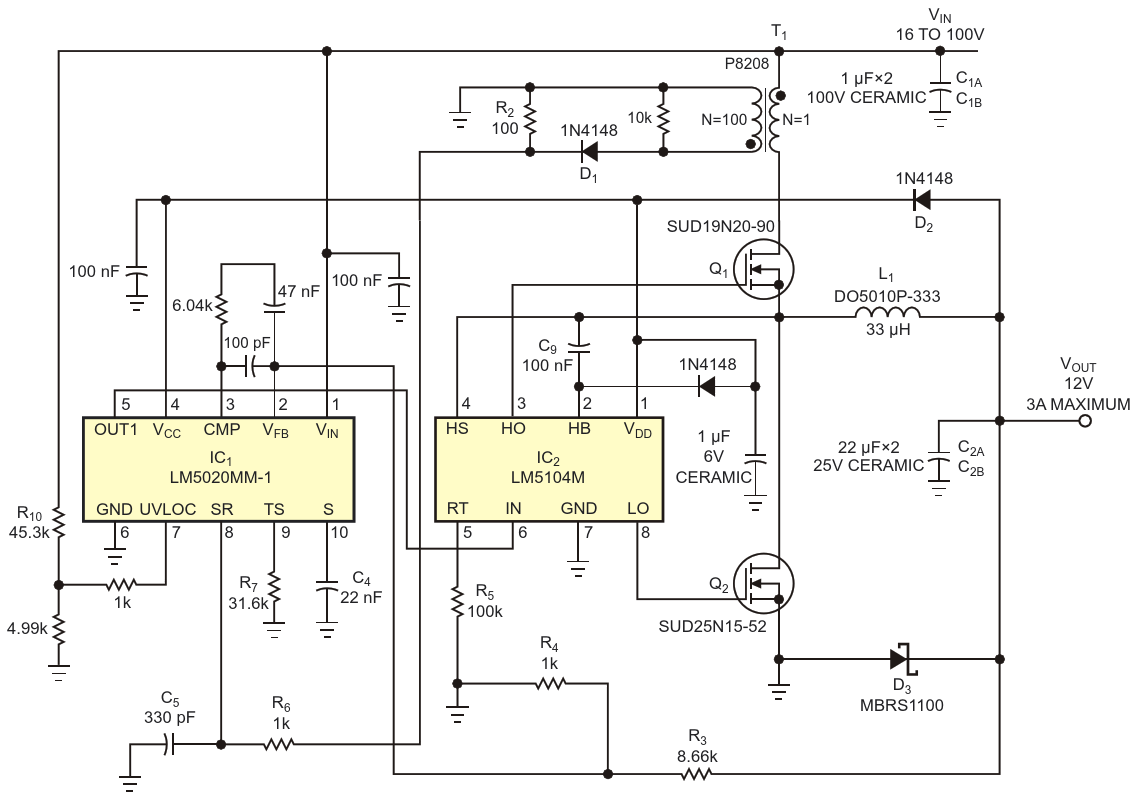

Two ICs and two MOSFETs form the heart of this high-efficiency, wide-range voltage regulator
| Authors | Wayne Rewinkel |
| Main Document | Article «Wide-range regulator delivers 12V, 3A output from 16 to 100V source» |
| Description | Figure 1 |
| File Format / Size | PDF / 35 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Wide-range regulator delivers 12V, 3A output from 16 to 100V source»
- Figure 1. Two ICs and two MOSFETs form the heart of this high-efficiency, wide-range voltage regulator
- Figure 2. Circuit efficiency varies as functions of power supply input voltage and load current
