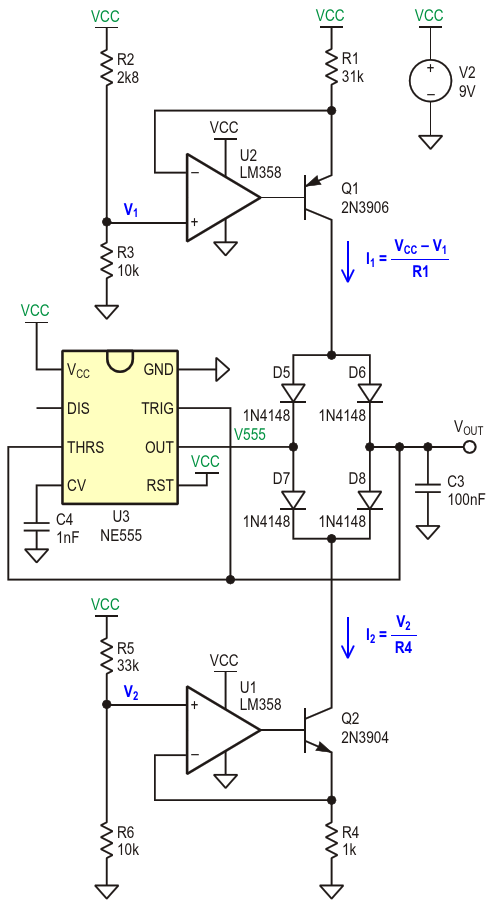

Schematic of triangle/sawtooth wave generator with an LM358 and two transistors used as current sources
| Authors | Alfredo Gonzalez Calvin |
| Main Document | Article «Adjustable Triangle/Sawtooth Wave Generator Using 555 Timer» |
| Description | Figure 3 |
| File Format / Size | PDF / 22 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Adjustable Triangle/Sawtooth Wave Generator Using 555 Timer»
- Figure 1. Circuit schematic of triangle/sawtooth wave generator using 555 timer
- Figure 3. Schematic of triangle/sawtooth wave generator with an LM358 and two transistors used as current sources
