This hysteretic regulator suffers from unpredictability of the switching frequency because of COUT ESR variance
| Authors | Wayne Rewinkel |
| Main Document | Article «Hysteretic regulators provide high performance at low cost» |
| Description | Figure 1 |
| File Format / Size | PDF / 11 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Hysteretic regulators provide high performance at low cost»

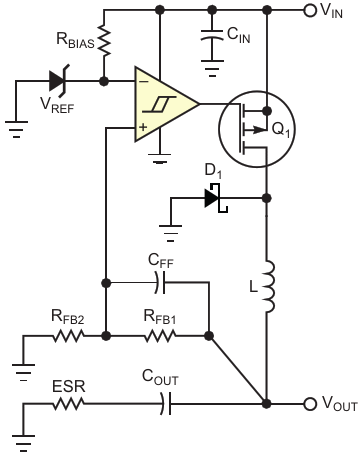

- Figure 1. This hysteretic regulator suffers from unpredictability of the switching frequency because of COUT ESR variance
- Figure 2. An added series resistor makes this circuit's switching frequency more predictable
- Figure 3. This circuit occupies an area smaller than a postage stamp
