Quad highspeed RRIO TLV9064 op-amp performs as comparator, integrator, and clipper while sipping single-digit milliwatts from a single, flexible, power source

Download PDF

Other Materials from the Main Document

• Article «Single supply function generator outputs buffered squares, triangles, and sines»

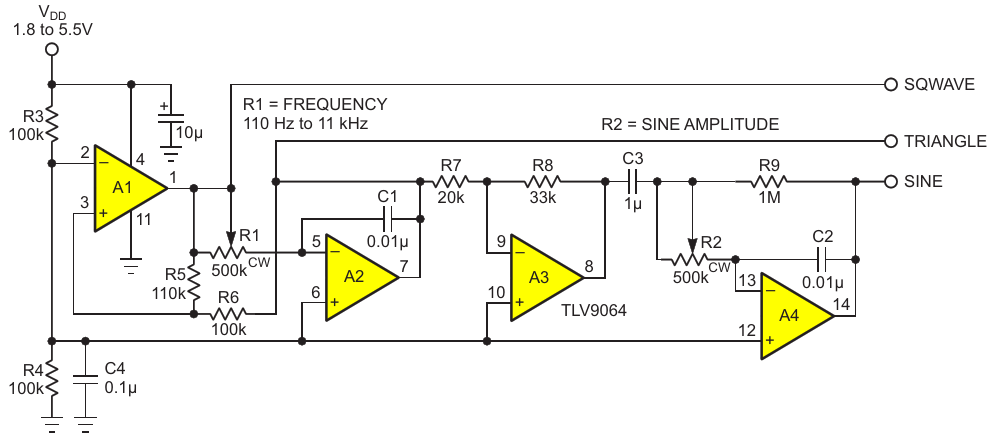

• Figure 1. Quad highspeed RRIO TLV9064 op-amp performs as comparator, integrator, and clipper while sipping single-digit milliwatts from a single, flexible, power source
• Figure 2. Simple integration of triangle would result in ±3%, 3rd harmonic sine error
• Figure 3. Imposing trapezoidal truncation of triangle at ±67% prior to integration reduces peak sine error to less than ±1% of mainly 5^th harmonic
