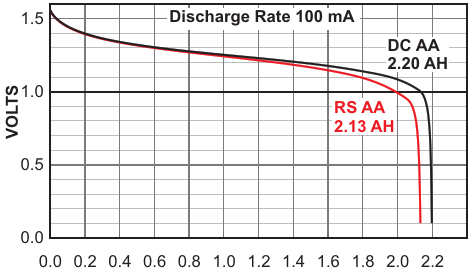

Typical AA cell discharge droop curves with an undesirable ±20% roll-off of battery voltage during discharge, resulting in a degradation of anemometer calibration accuracy
| Authors | Stephen Woodward |
| Main Document | Article «Portable thermal anemometer hot-transistor bias compensation nulls battery discharge droop» |
| Description | Figure 3 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
