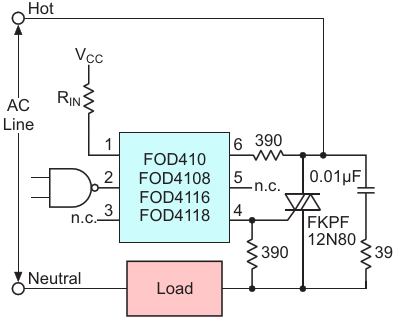

A simplified triac drive arrangement that will turn on AC line voltage to a load
| Authors | John Dunn |
| Main Document | Article «Triac and relay combination» |
| Description | Figure 1 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Triac and relay combination»
- Figure 1. A simplified triac drive arrangement that will turn on AC line voltage to a load
- Figure 2. The revised triac drive arrangement with a relay added such that when the pushbutton is pressed, the triac turns on AC to the load using its zero-crossover feature
