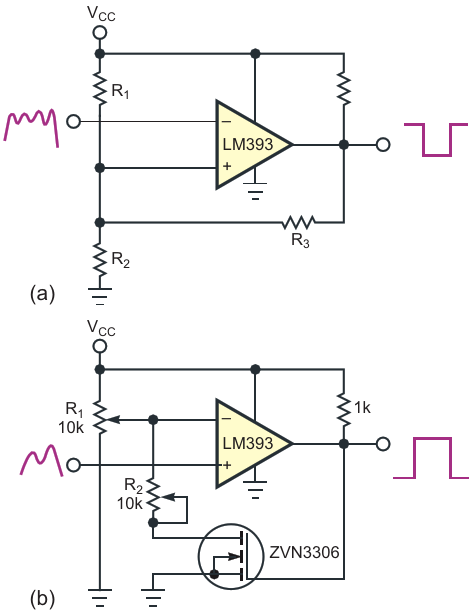

The classical Schmitt-trigger circuit (a) requires an iterative adjustment and the op amp's sink current affects the ability to adjust the circuit. The adjustable levels of an improved circuit (b) are completely independent
