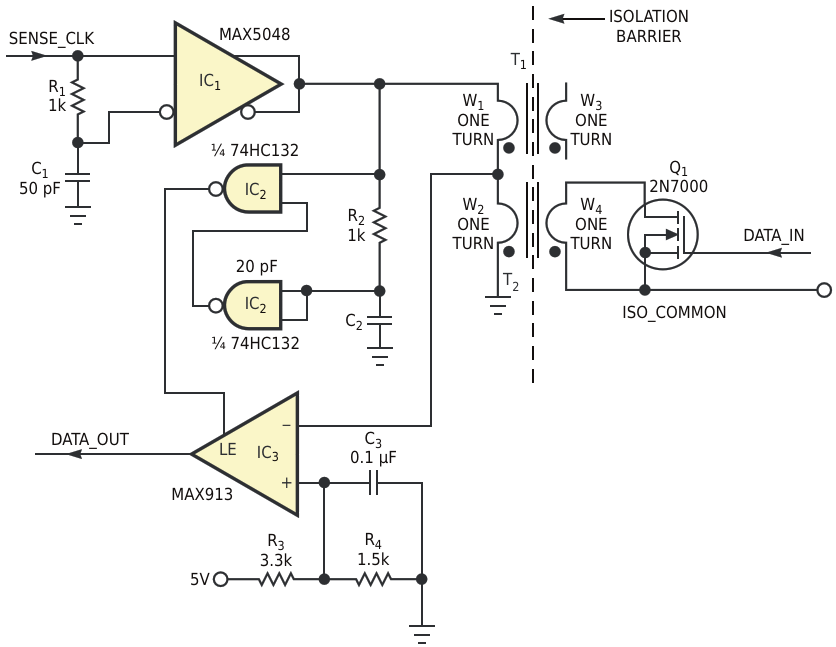

For each positive-going transition of SENSE_CLK, this circuit returns (at DATA_OUT) the state of the galvanically isolated digital signal at DATA_IN
| Authors | Alfredo Saab |
| Main Document | Article «Read isolated digital signals without power drain» |
| Description | Figure 1 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Read isolated digital signals without power drain»
- Figure 1. For each positive-going transition of SENSE_CLK, this circuit returns (at DATA_OUT) the state of the galvanically isolated digital signal at DATA_IN
- Figure 2. Timing relationships for selected signals in the circuit of Figure 1
