The driving circuit for the new hotplate

Authors	Nick Cornford
Main Document	Article «5-V ovens (some assembly required). Part 2»
Description	Figure 5
File Format / Size	PDF / 19 Kb
Document Language	English

Other Materials from the Main Document

Article «5-V ovens (some assembly required). Part 2»

Figure 1. A tri-wave oscillator, a thermistor, and a comparator work together to pulse-width modulate the current through R7, the main heating element. Q1 switches that current and also helps with the heating

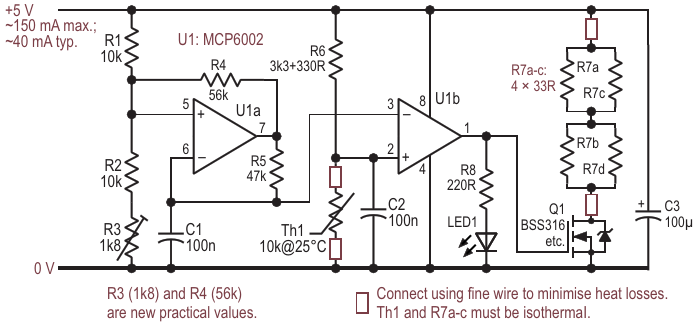

Figure 5. The driving circuit for the new hotplate
