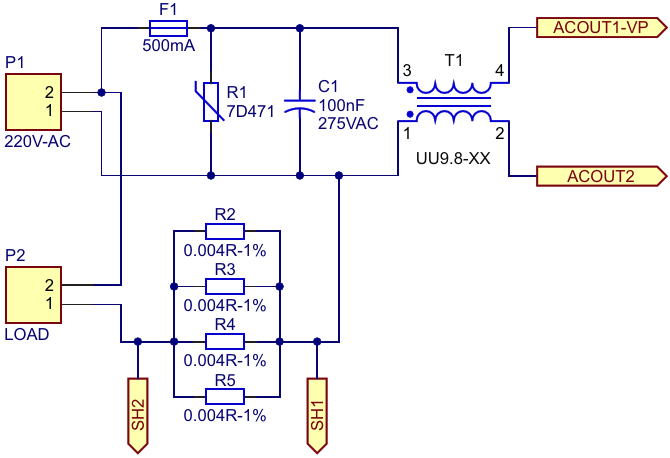

Schematic diagram of the AC input, load terminal, shunt resistor, and input protection
| Authors | Hesam Moshiri |
| Main Document | Article «Digital AC energy measurement circuit V2 RMS voltage, RMS current, real power, power factor, energy kWh» |
| Description | Figure 1 |
| File Format / Size | PDF / 13 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Digital AC energy measurement circuit V2 RMS voltage, RMS current, real power, power factor, energy kWh»
- Figure 1. Schematic diagram of the AC input, load terminal, shunt resistor, and input protection
