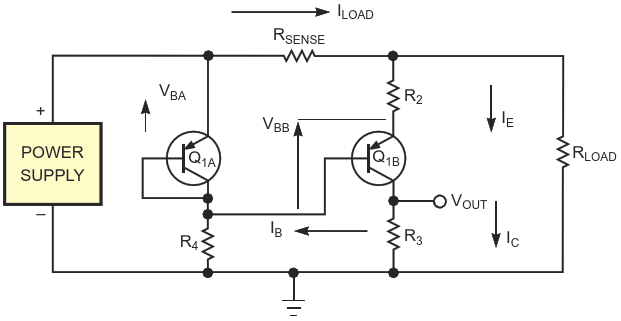

This simple two-transistor circuit provides a voltage output proportional to the current through sense resistor RSENSE

AuthorsRobert Zawislak
Main DocumentArticle «Dual transistor improves current-sense circuit»
DescriptionFigure 1
File Format / SizePDF / 17 Kb
Document Languageenglish

This simple two-transistor circuit provides a voltage output proportional to the current through sense resistor R sub SENSE /sub
