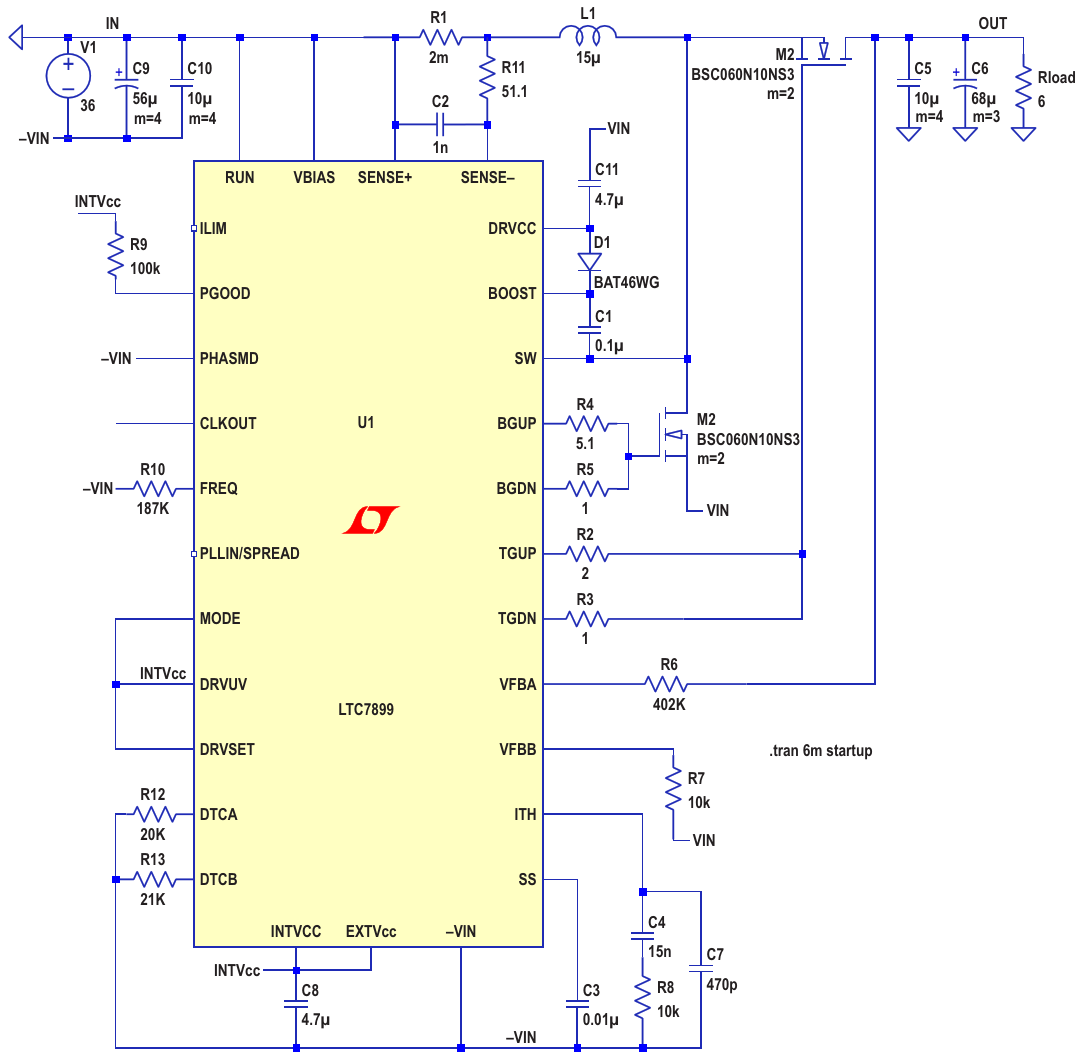

LTspice circuit diagram of the LTC7899 circuit
| Authors | Frederik Dostal |
| Main Document | Article «How to invert voltages» |
| Description | Figure 3 |
| File Format / Size | PDF / 22 Kb |
| Document Language | English |
