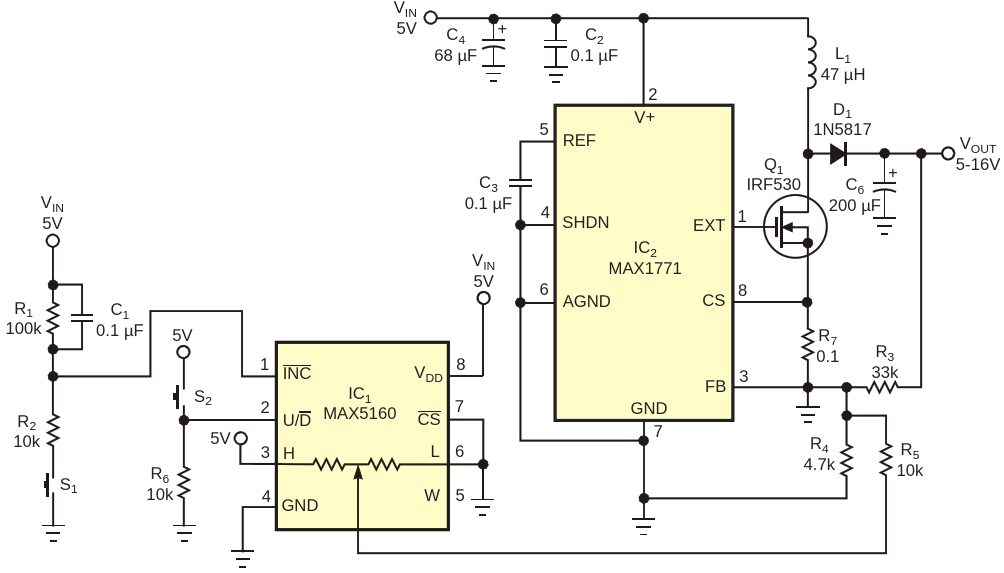

A digital potentiometer, IC1, and two pushbutton switches, S1 and S2, let you adjust the regulated output voltage of boost converter IC2 over a 10 V range

AuthorsSimon Bramble
Main DocumentArticle «Pushbuttons and digital potentiometer control boost converter»
DescriptionFigure 1
File Format / SizePDF / 30 Kb
Document Languageenglish

A digital potentiometer, IC sub 1 /sub , and two pushbutton switches, S sub 1 /sub  and S sub 2 /sub , let you adjust the regulated output voltage of boost converter IC sub 2 /sub  over a 10 V range
