This gate drive transformer circuit provides the MOSFET drive signals ranging from 50% down to 0% while maintaining a fast turn-off time
| Authors | Rick Mally |
| Main Document | Article «Gate Drive Transformer Circuit Maintains Fast Turn-Off Time» |
| Description | Figure 1 |
| File Format / Size | PDF / 35 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Gate Drive Transformer Circuit Maintains Fast Turn-Off Time»

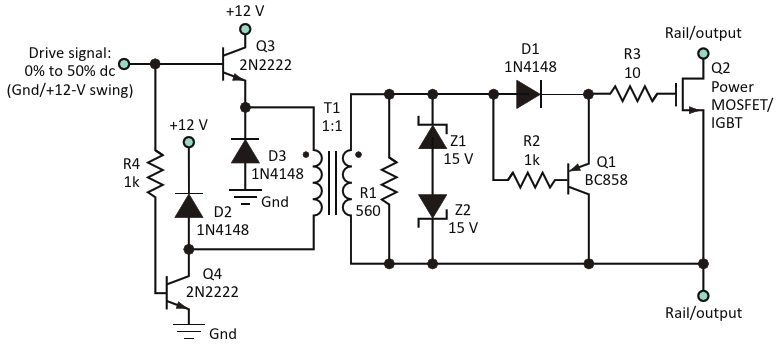

- Figure 1. This gate drive transformer circuit provides the MOSFET drive signals ranging from 50% down to 0% while maintaining a fast turn-off time
- Figure 2. A typical forward-converter application uses two of the gate drive transformer circuits connected as shown
