Negative Charge Pump Circuit

Authors	Mahmoud Harmouch
Main Document	Article «TLC555-Q1 Used as a Positive and Negative Charge Pump»
Description	Figure 6
File Format / Size	PDF / 18 Kb
Document Language	English

Other Materials from the Main Document

Article «TLC555-Q1 Used as a Positive and Negative Charge Pump»

Figure 1. Functional Block Diagram
Figure 2. Positive Charge-Pump Circuit
Figure 5. Charge-Pump Output Voltage versus Load Current

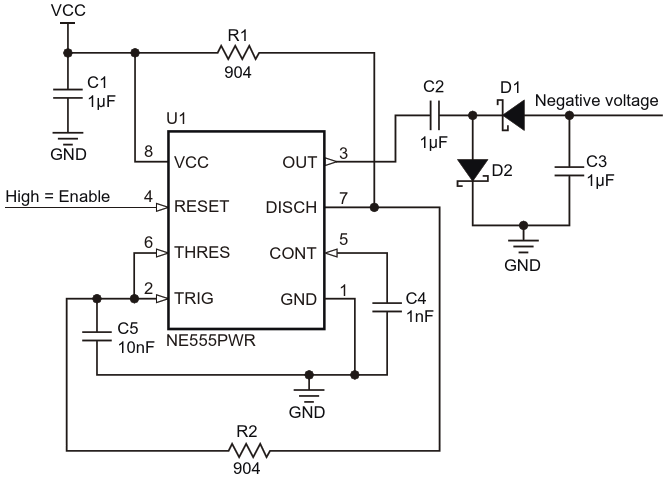

Figure 6. Negative Charge Pump Circuit
Figure 9. Charge Pump Output Voltage versus Load Current
