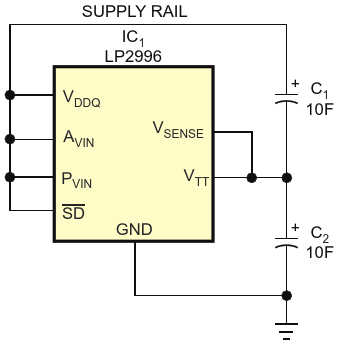

This simple circuit requires only a single IC to balance the charges on two series-connected, low-voltage, high-value capacitors and maintain their common junction at one-half of the supply voltage

AuthorsClayton Grantham
Main DocumentArticle «Memory-termination IC balances charges on series capacitors»
DescriptionFigure 1
File Format / SizePDF / 9 Kb
Document Languageenglish

This simple circuit requires only a single IC to balance the charges on two series-connected, low-voltage, high-value capacitors and maintain their common junction at one-half of the supply voltage
