Formed by IC1a and IC1b, the basic signal generator uses phase-shifted versions for the other outputs, each of which is buffered by a non-inverting and inverting amplifier to provide the additional outputs
| Authors | Petre Petrov |
| Main Document | Article «Op Amps Build Simple Multiphase Signal Generator» |
| Description | Figure 2 |
| File Format / Size | PDF / 39 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Op Amps Build Simple Multiphase Signal Generator»
- Figure 1. The fixed-frequency, fixed-multiphase generator uses repetitive blocks to provide stepped phase differences relative to the original waveform

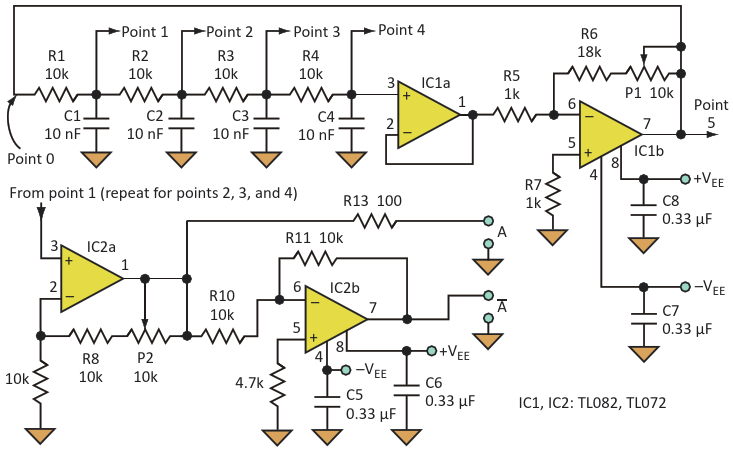

- Figure 2. Formed by IC1a and IC1b, the basic signal generator uses phase-shifted versions for the other outputs, each of which is buffered by a non-inverting and inverting amplifier to provide the additional outputs
