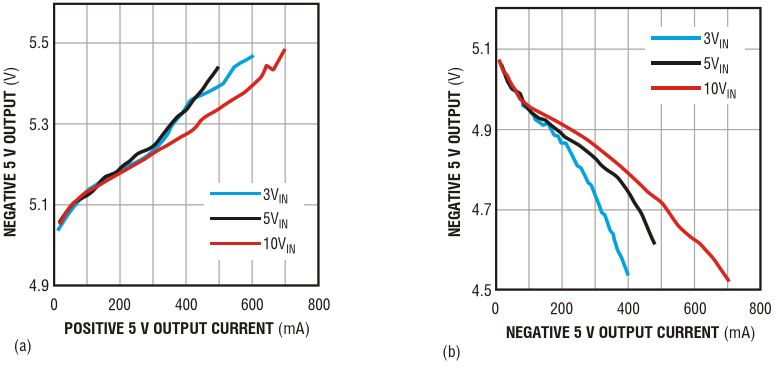

These curves show the regulation of the -5 V supply as a function of the 5 V output current (a), and the regulation of the same output as a function of the -5 V output current (b)
| Authors | David Kim |
| Main Document | Article «Transformerless dc/dc converter produces bipolar outputs» |
| Description | Figure 3 |
| File Format / Size | PDF / 27 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Transformerless dc/dc converter produces bipolar outputs»
- Figure 1. A simple circuit produces -5 V from a single positive input without the need for a transformer
- Figure 2. This graphic shows maximum output current versus input voltage for both outputs or a single output
- Figure 3. These curves show the regulation of the -5 V supply as a function of the 5 V output current (a), and the regulation of the same output as a function of the -5 V output current (b)
