A PWM controlled amplifier/attenuator DC input stage
| Authors | Stephen Woodward |
| Main Document | Article «Set DC input-stage gain/attenuation over a 96 dB range with PWM» |
| Description | Figure 1 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Set DC input-stage gain/attenuation over a 96 dB range with PWM»

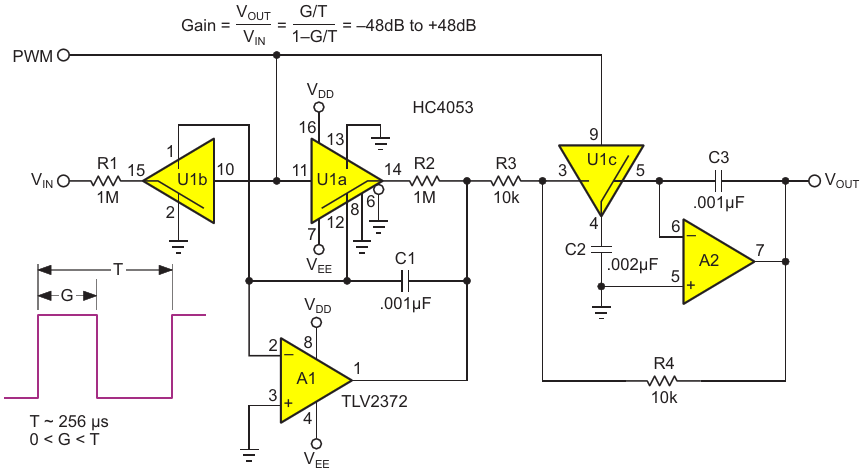

- Figure 1. A PWM controlled amplifier/attenuator DC input stage
- Figure 2. The linear gain plot (Red = 0 to 5 and Blue = 0 to 255)
- Figure 3. The log gain plot
