Current ramps into tunnel …

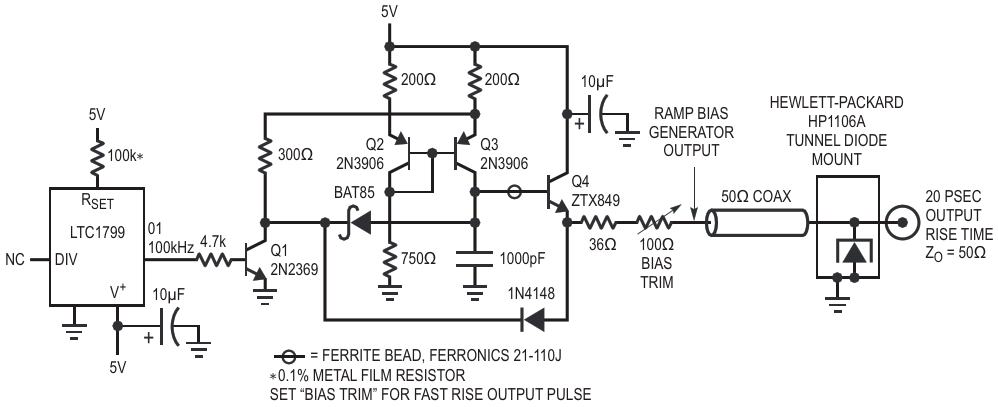

Current ramps into tunnel diode until switching occurs, producing a 20 ps edge. Q1, squarewave clocked from O1, switches Q2-Q3 capacitively loaded current source, producing repetitive ramps at Q4. Ascending current through output resistors triggers tunnel

AuthorsJim Williams
Main DocumentArticle «20 picosecond rise time pulse generator»
DescriptionFigure 1
Pages / Page2 / 1
File Format / SizePDF / 22 Kb
Document LanguageEnglish

Current ramps into tunnel diode until switching occurs, producing a 20 ps edge Q1, squarewave clocked from O1, switches Q2-Q3 capacitively loaded current source, producing repetitive ramps at Q4 Ascending current through output resistors triggers tunnel
