Flip/flop-free debounced push ON push OFF toggling with power-on reset and low parts count
| Authors | Stephen Woodward |
| Main Document | Article «Flip ON flop OFF without a flip/flop» |
| Description | Figure 1 |
| File Format / Size | PDF / 11 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Flip ON flop OFF without a flip/flop»

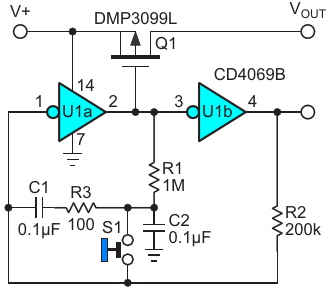

- Figure 1. Flip/flop-free debounced push ON push OFF toggling with power-on reset and low parts count
- Figure 2. Power up turn off where the rising edge of V+ at PFET a's source with its gate held low by RCs turns it on
- Figure 3. Do something useful with the other 2/3rds of U1, eliminate Q1 for loads of less than 10 mA, and gain short-circuit protection for free
