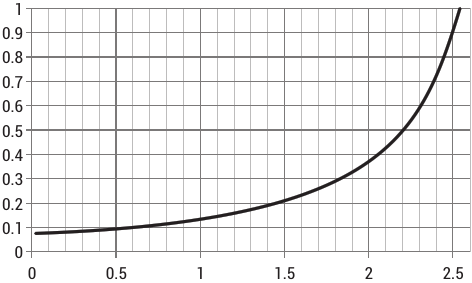

The PWM D versus the desired conduction angle R. The y-axis is the D, and the x-axis is in radians
| Authors | Stephen Woodward |
| Main Document | Article «Independent control of thyristor half-wave firing angles via PWM» |
| Description | Figure 3 |
| File Format / Size | PDF / 8 Kb |
| Document Language | English |
