Flip ON/Flop OFF referenced to the V+ rail. If V+ < 15 V, then set R4 = 0 and omit C2 and Z1. Ensure that C2's voltage rating is > (V+ - 15 V) and if V+ > 80 V, R4 > 4 V+2

AuthorsStephen Woodward
Main DocumentArticle «Flip ON Flop OFF: high(ish) voltages from the positive supply rail»

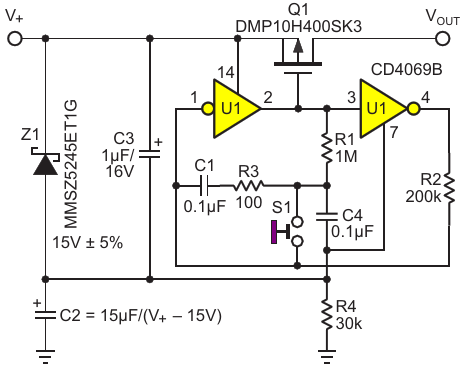

DescriptionFigure 1
File Format / SizePDF / 14 Kb
Document LanguageEnglish

Flip ON/Flop OFF referenced to the V+ rail If V+   15 V, then set R4 = 0 and omit C2 and Z1 Ensure that C2's voltage rating is   (V+ - 15 V) and if V+   80 V, R4   4 V+ sup 2 /sup
