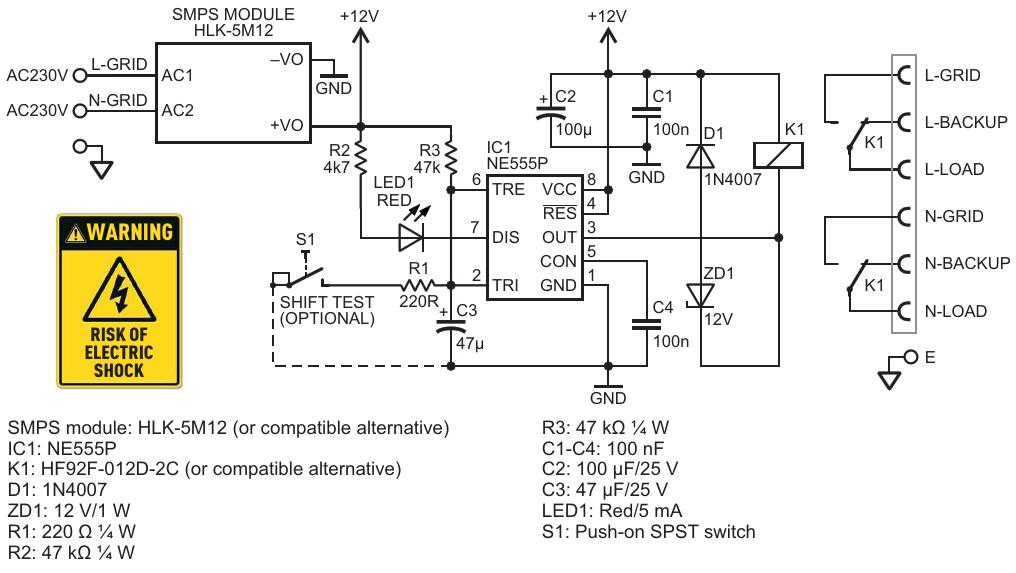

The schematic shows an ATS built from a handful of analog components
| Authors | T.K. Hareendran |
| Main Document | Article «Build automatic transfer switch (ATS) with simple analog electronics» |
| Description | Figure 2 |
| File Format / Size | PDF / 35 Kb |
| Document Language | English |
