Flip-flop U2b generates complementary excitation of the A and B capacitors under test
| Authors | Stephen Woodward |
| Main Document | Article «Capacitor matchmaker» |
| Description | Figure 1 |
| File Format / Size | PDF / 20 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Capacitor matchmaker»

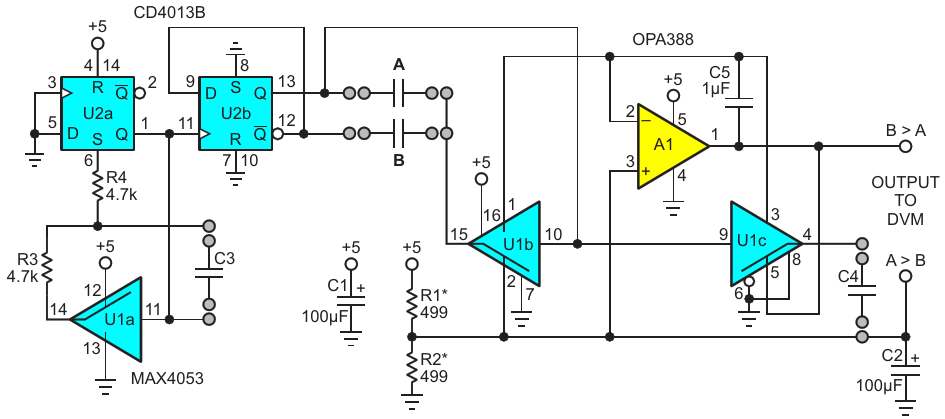

- Figure 1. Flip-flop U2b generates complementary excitation of the A and B capacitors under test
- Figure 2. The U1aU2a multivibrator waveforms; the green waveform is the R3R4 junction, and the red waveform is U2 pin 6. The frequency is 0.1 mHz/C3
