Ten discrete parts comprise a circuit for linear regulator programming with PWM
| Authors | Stephen Woodward |
| Main Document | Article «PWM buck regulator interface generalized design equations» |
| Description | Figure 1 |
| File Format / Size | PDF / 13 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «PWM buck regulator interface generalized design equations»

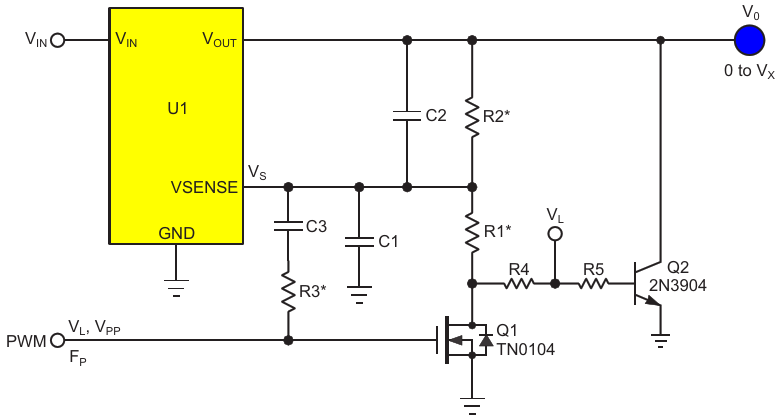

- Figure 1. Ten discrete parts comprise a circuit for linear regulator programming with PWM
- Figure 2. General design-accommodating parameters listed above. Note that U1-specific parts (e.g., inductor, capacitors, and power diode) are not shown
