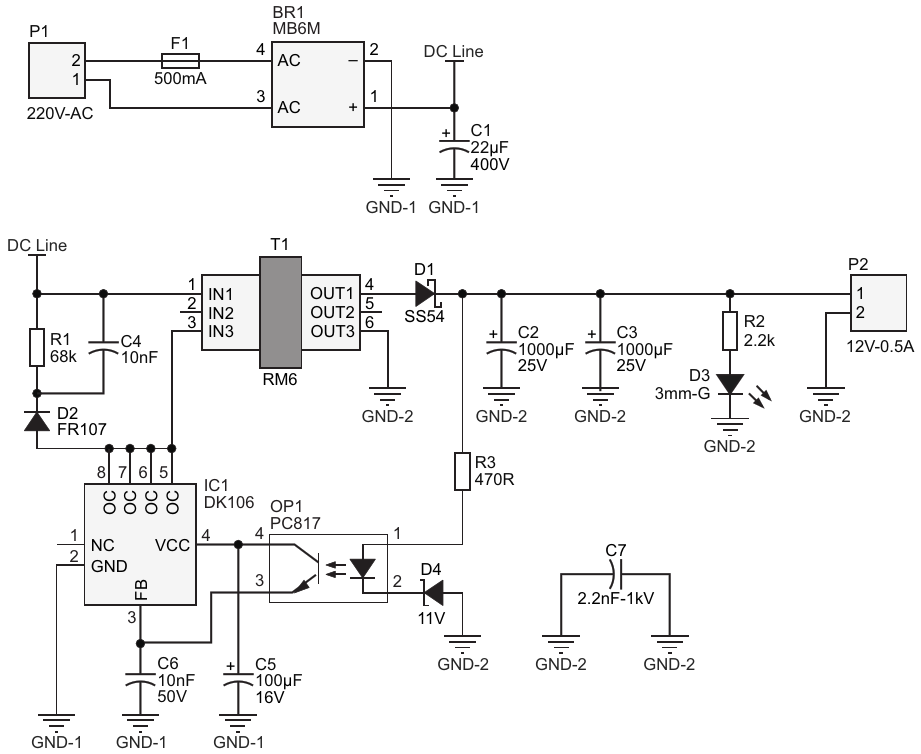

Schematic diagram of the 85 VAC-260 VAC to 12 V-0.5 A AC-to-DC Isolated Flyback Converter
| Authors | Hesam Moshiri |
| Main Document | Article «85VAC-260VAC to 12V-0.5A AC-to-DC flyback converter using an RM6 ferrite core» |
| Description | Figure 1 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «85VAC-260VAC to 12V-0.5A AC-to-DC flyback converter using an RM6 ferrite core»
- Figure 1. Schematic diagram of the 85 VAC-260 VAC to 12 V-0.5 A AC-to-DC Isolated Flyback Converter
- Figure 5. Transformer and winding directions
