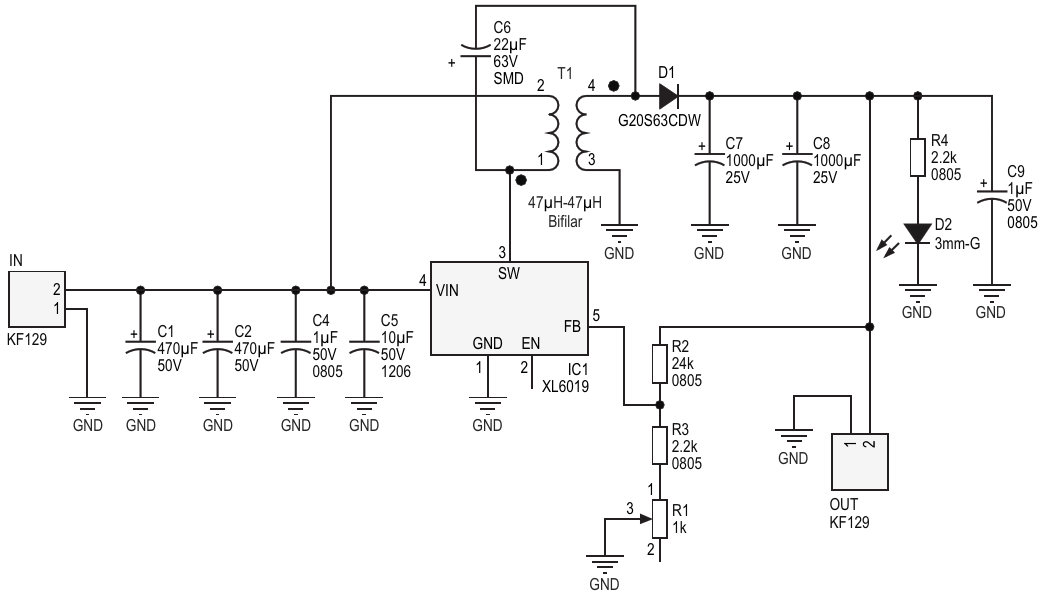

Schematic diagram of the XL6019 buck-boost converter
| Authors | Hesam Moshiri |
| Main Document | Article «Buck boost converter using XL6019 (bifilar choke)» |
| Description | Figure 1 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Buck boost converter using XL6019 (bifilar choke)»
- Figure 1. Schematic diagram of the XL6019 buck-boost converter
- Figure 2. Functional block diagram of the XL6019
