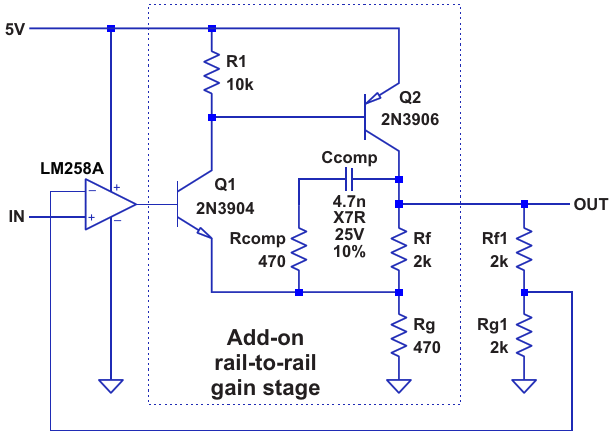

This simple rail-to-rail gain stage, consisting of Q₁, Q₂, R₁, R_F, R_G, R_COMP, and C_COMP, is driven by the output of the LM258A op-amp. Feedback network R_F1 and R_G

Authors	Christopher Paul
Main Document	Article «Extend the LM358 op-amp family's output voltage range»
Description	Figure 1
File Format / Size	PDF / 14 Kb
Document Language	English

Slices

This simple rail-to-rail gain stage, consisting of Q1, Q2, R1, RF, RG, RCOMP, and CCOMP, is driven by the output of the LM258A op-amp. Feedback network RF1 and RG
