Schematic diagram transformerless 85-260 VAC to 12 VDC-0.2 A power supply
| Authors | Hesam Moshiri |
| Main Document | Article «Transformerless 85-260VAC to 12VDC-0.2A power supply» |
| Description | Figure 1 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Transformerless 85-260VAC to 12VDC-0.2A power supply»

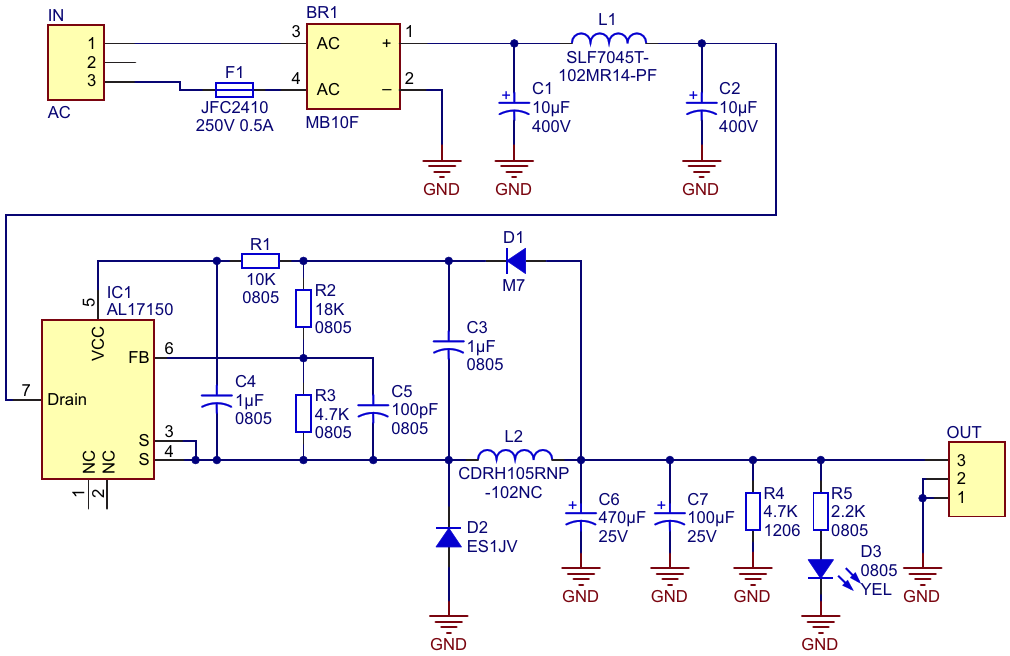

- Figure 1. Schematic diagram transformerless 85-260 VAC to 12 VDC-0.2 A power supply
- Figure 3. Voltage and current waveforms of C2 (simulation)
