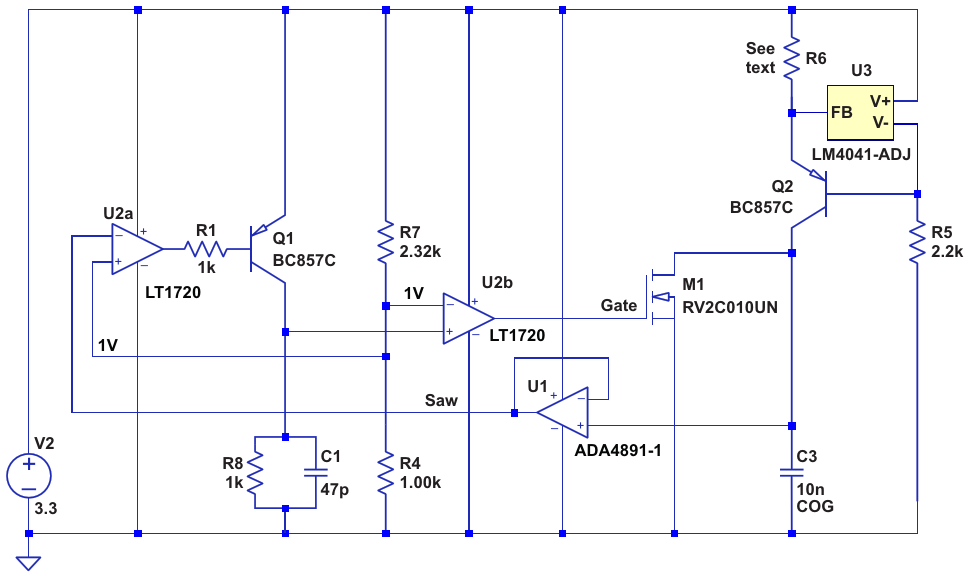

The sawtooth output waveform is the signal "saw" available at the output of op amp U1A. Its frequency is set by the value of resistor R6 which can vary from 120 Ω to 12 MΩ
