Simple analog supply sequencing accomplished using an SPDT switch for ON/OFF control and RC time constants, and Schmidt triggers for sequencing
| Authors | Stephen Woodward |
| Main Document | Article «Silly simple supply sequencing» |
| Description | Figure 1 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Silly simple supply sequencing»

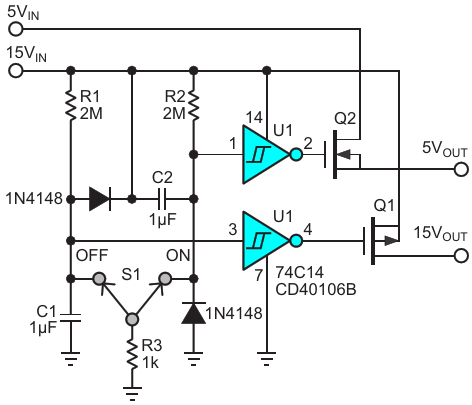

- Figure 1. Simple analog supply sequencing accomplished using an SPDT switch for ON/OFF control and RC time constants, and Schmidt triggers for sequencing
- Figure 2. Power sequence timing when S1 is flipped to ON, connecting C2 near ground through R3
- Figure 3. Alternative Schmidt trigger possibilities
