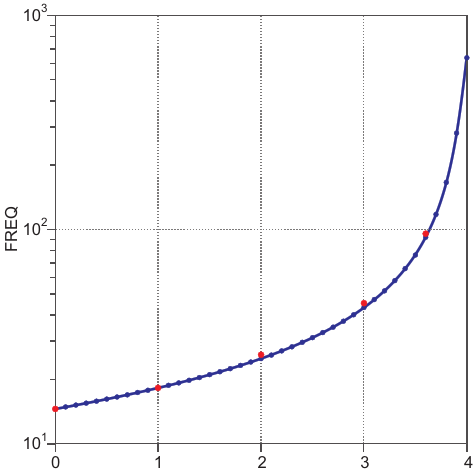

QSPICE simulation of frequency with respect to CV from 0 V to 3.9 V in 100 mV steps
| Authors | Uwe Schüler |
| Main Document | Article «555 VCO revisited» |
| Description | Figure 2 |
| File Format / Size | PDF / 9 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «555 VCO revisited»
- Figure 1. Classic VCO (top) and new 555 VCO variant (bottom), where Pin 5 is not modulated, which leads to a constant 50% pulse width, independent of frequency
- Figure 2. QSPICE simulation of frequency with respect to CV from 0 V to 3.9 V in 100 mV steps
