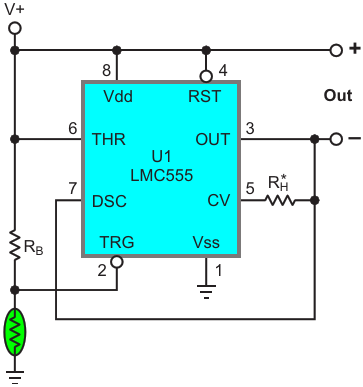

Basic bang bang heating configuration. Setpoint thermistor resistance = RB/2. Optional RH sets desired temperature hysteresis. Output rated at up to 15 volts and 300 mA = 4.5 W
| Authors | Stephen Woodward |
| Main Document | Article «LM555 begets basic bang bang thermostat» |
| Description | Figure 1 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «LM555 begets basic bang bang thermostat»
- Figure 1. Basic bang bang heating configuration. Setpoint thermistor resistance = RB/2. Optional RH sets desired temperature hysteresis. Output rated at up to 15 volts and 300 mA = 4.5 W
- Figure 2. Cooling configuration: Setpoint thermistor resistance = 2RB
- Figure 3. Typical configurations for 50 °C setpoint. Heating (left), Cooling (right) with ~1° hysteresis
